Definition Type: ComplexType
Name: SecondaryHazardType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Secondary Hazard. Details Information about Secondary Hazard (related to a Hazardous Item). Secondary Hazard

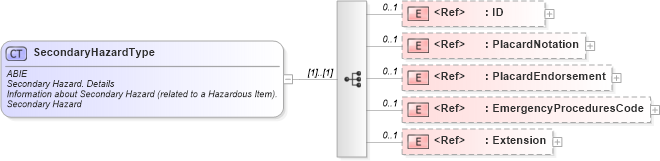

Collapse XSD Schema Diagram:
Drilldown into Extension in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into EmergencyProceduresCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PlacardEndorsement in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PlacardNotation in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of SecondaryHazardType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="SecondaryHazardType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Secondary Hazard. Details</ccts:DictionaryEntryName>
                <ccts:Definition>Information about Secondary Hazard (related to a Hazardous Item).</ccts:Definition>
                <ccts:ObjectClass>Secondary Hazard</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:ID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Secondary Hazard. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies the Secondary Hazard.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Secondary Hazard</ccts:ObjectClass>
                        <ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:PlacardNotation" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Secondary Hazard. Placard Notation. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>The placard notation corresponding to the hazard class of the hazardous commodity. Can also be the hazard identification number of the orange placard (upper part) required on the means of transport.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Secondary Hazard</ccts:ObjectClass>
                        <ccts:PropertyTerm>Placard Notation</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:Examples>"5.1"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:PlacardEndorsement" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Secondary Hazard. Placard Endorsement. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>The placard endorsement that is to be shown on the shipping papers for the hazardous commodity. Can also be used for the number of the orange placard (lower part) required on the means of transport.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Secondary Hazard</ccts:ObjectClass>
                        <ccts:PropertyTerm>Placard Endorsement</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:Examples>"2"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:EmergencyProceduresCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Secondary Hazard. Emergency Procedures Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>Emergency procedures for hazardous goods, expressed as a code.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Secondary Hazard</ccts:ObjectClass>
                        <ccts:PropertyTerm>Emergency Procedures Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>EMG code, EMS Page Number</ccts:AlternativeBusinessTerms>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Extension" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Secondary Hazard. Extension. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>Additional information about the hazardous substance. Can be used to specify information such as the type of regulatory requirements that apply to a description.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Secondary Hazard</ccts:ObjectClass>
                        <ccts:PropertyTerm>Extension</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:Examples>"N.O.S. or a Waste Characteristics Code in conjunction with an EPA Waste Stream code"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 0 1
PlacardNotation cbc:PlacardNotation 0 1
PlacardEndorsement cbc:PlacardEndorsement 0 1
EmergencyProceduresCode cbc:EmergencyProceduresCode 0 1
Extension cbc:Extension 0 1
Collapse Derivation Tree:
Collapse References:
cac:SecondaryHazard
