Definition Type: Element
Name: Signature
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:SignatureType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

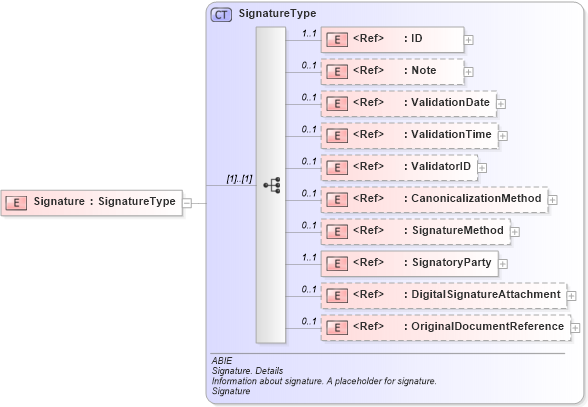

Collapse XSD Schema Diagram:
Drilldown into OriginalDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DigitalSignatureAttachment in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into SignatoryParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into SignatureMethod in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CanonicalizationMethod in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ValidatorID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ValidationTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ValidationDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into SignatureType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of Signature in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="Signature" type="SignatureType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 1 1
Note cbc:Note 0 1
ValidationDate cbc:ValidationDate 0 1
ValidationTime cbc:ValidationTime 0 1
ValidatorID cbc:ValidatorID 0 1
CanonicalizationMethod cbc:CanonicalizationMethod 0 1
SignatureMethod cbc:SignatureMethod 0 1
SignatoryParty cac:SignatoryParty 1 1
DigitalSignatureAttachment cac:DigitalSignatureAttachment 0 1
OriginalDocumentReference cac:OriginalDocumentReference 0 1
Collapse Derivation Tree:
