Definition Type: ComplexType
Name: TransportEquipmentSealType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Transport Equipment Seal. Details Information about a transport equipment seal (a security device attached to the doors of a shipping container). Transport Equipment Seal Container Seal

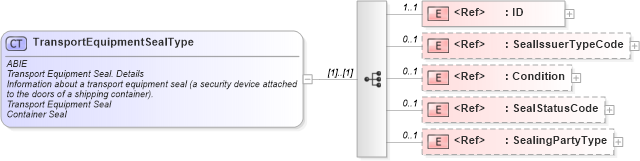

Collapse XSD Schema Diagram:
Drilldown into SealingPartyType in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into SealStatusCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Condition in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into SealIssuerTypeCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of TransportEquipmentSealType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="TransportEquipmentSealType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Transport Equipment Seal. Details</ccts:DictionaryEntryName>
                <ccts:Definition>Information about a transport equipment seal (a security device attached to the doors of a shipping container).</ccts:Definition>
                <ccts:ObjectClass>Transport Equipment Seal</ccts:ObjectClass>
                <ccts:AlternativeBusinessTerms>Container Seal</ccts:AlternativeBusinessTerms>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:ID" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment Seal. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies the seal.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment Seal</ccts:ObjectClass>
                        <ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>"ACS1234"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:SealIssuerTypeCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment Seal. Seal Issuer Type Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>The type of party that issues and is responsible for a seal, expressed as a code.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment Seal</ccts:ObjectClass>
                        <ccts:PropertyTerm>Seal Issuer Type Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Condition" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment Seal. Condition. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>Information about the condition of a seal.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment Seal</ccts:ObjectClass>
                        <ccts:PropertyTerm>Condition</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:SealStatusCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment Seal. Seal Status Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>The status of a seal, expressed as a code.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment Seal</ccts:ObjectClass>
                        <ccts:PropertyTerm>Seal Status Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:SealingPartyType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment Seal. Sealing Party Type. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>Textual description of the role of a sealing party.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment Seal</ccts:ObjectClass>
                        <ccts:PropertyTerm>Sealing Party Type</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>Sealing Party</ccts:AlternativeBusinessTerms>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 1 1
SealIssuerTypeCode cbc:SealIssuerTypeCode 0 1
Condition cbc:Condition 0 1
SealStatusCode cbc:SealStatusCode 0 1
SealingPartyType cbc:SealingPartyType 0 1
Collapse Derivation Tree:
Collapse References:
cac:TransportEquipmentSeal
