Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: action
Namespace: http://schemas.microsoft.com/office/infopath/2003/solutionDefinition
Containing Schema: sd.xsd
Abstract

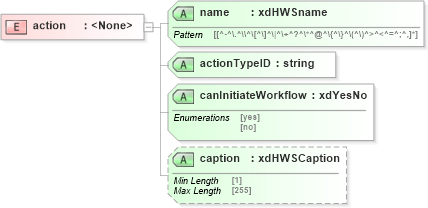

Collapse XSD Schema Diagram:
Drilldown into caption in schema sd_xsd Drilldown into canInitiateWorkflow in schema sd_xsd Drilldown into actionTypeID in schema sd_xsd Drilldown into name in schema sd_xsdXSD Diagram of action in schema sd_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="action">
    <xsd:complexType>
        <xsd:attribute name="name" type="xsf:xdHWSname" use="required" />
        <xsd:attribute name="actionTypeID" type="xsd:string" use="required" />
        <xsd:attribute name="canInitiateWorkflow" type="xsf:xdYesNo" use="required" />
        <xsd:attribute name="caption" type="xsf:xdHWSCaption" use="optional" />
    </xsd:complexType>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
name xsf:name Required
actionTypeID xsf:actionTypeID Required
canInitiateWorkflow xsf:canInitiateWorkflow Required
caption xsf:caption Optional
