Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: adoAdapter
Namespace: http://schemas.microsoft.com/office/infopath/2003/solutionDefinition
Containing Schema: sd.xsd
Abstract

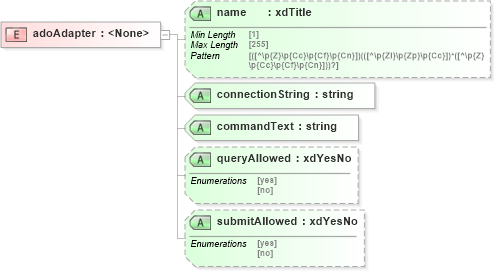

Collapse XSD Schema Diagram:
Drilldown into submitAllowed in schema sd_xsd Drilldown into queryAllowed in schema sd_xsd Drilldown into commandText in schema sd_xsd Drilldown into connectionString in schema sd_xsd Drilldown into name in schema sd_xsdXSD Diagram of adoAdapter in schema sd_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="adoAdapter">
    <xsd:complexType>
        <xsd:attribute name="name" type="xsf:xdTitle" use="optional" />
        <xsd:attribute name="connectionString" type="xsd:string" use="required" />
        <xsd:attribute name="commandText" type="xsd:string" use="required" />
        <xsd:attribute name="queryAllowed" type="xsf:xdYesNo" use="optional" />
        <xsd:attribute name="submitAllowed" type="xsf:xdYesNo" use="optional" />
    </xsd:complexType>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
name xsf:name Optional
connectionString xsf:connectionString Required
commandText xsf:commandText Required
queryAllowed xsf:queryAllowed Optional
submitAllowed xsf:submitAllowed Optional
