Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: ComplexType
Name: AlignmentType
Namespace: urn:schemas-microsoft-com:office:spreadsheet
Containing Schema: excelss.xsd
Abstract
Documentation:
Defines a collection of font alignment attributes.

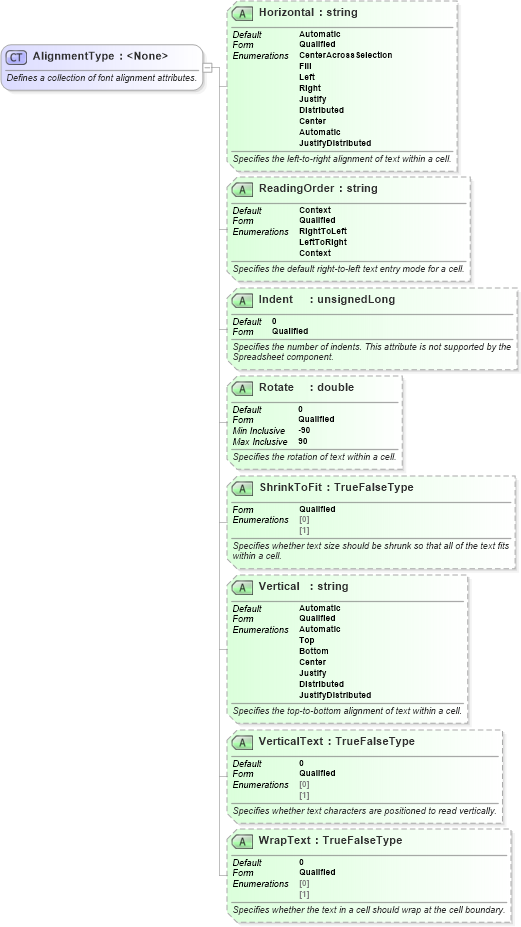

Collapse XSD Schema Diagram:
Drilldown into WrapText in schema excelss_xsd Drilldown into VerticalText in schema excelss_xsd Drilldown into Vertical in schema excelss_xsd Drilldown into ShrinkToFit in schema excelss_xsd Drilldown into Rotate in schema excelss_xsd Drilldown into Indent in schema excelss_xsd Drilldown into ReadingOrder in schema excelss_xsd Drilldown into Horizontal in schema excelss_xsdXSD Diagram of AlignmentType in schema excelss_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="AlignmentType">
    <xsd:annotation>
        <xsd:documentation>Defines a collection of font alignment attributes.</xsd:documentation>
    </xsd:annotation>
    <xsd:attribute form="qualified" name="Horizontal" use="optional" default="Automatic">
        <xsd:annotation>
            <xsd:documentation>Specifies the left-to-right alignment of text within a cell.</xsd:documentation>
        </xsd:annotation>
        <xsd:simpleType>
            <xsd:restriction base="xsd:string">
                <xsd:enumeration value="CenterAcrossSelection" />
                <xsd:enumeration value="Fill" />
                <xsd:enumeration value="Left" />
                <xsd:enumeration value="Right" />
                <xsd:enumeration value="Justify" />
                <xsd:enumeration value="Distributed" />
                <xsd:enumeration value="Center" />
                <xsd:enumeration value="Automatic" />
                <xsd:enumeration value="JustifyDistributed" />
            </xsd:restriction>
        </xsd:simpleType>
    </xsd:attribute>
    <xsd:attribute form="qualified" name="ReadingOrder" use="optional" default="Context">
        <xsd:annotation>
            <xsd:documentation>Specifies the default right-to-left text entry mode for a cell.</xsd:documentation>
        </xsd:annotation>
        <xsd:simpleType>
            <xsd:restriction base="xsd:string">
                <xsd:enumeration value="RightToLeft" />
                <xsd:enumeration value="LeftToRight" />
                <xsd:enumeration value="Context" />
            </xsd:restriction>
        </xsd:simpleType>
    </xsd:attribute>
    <xsd:attribute form="qualified" name="Indent" type="xsd:unsignedLong" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Specifies the number of indents. This attribute is not supported by the Spreadsheet component.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute form="qualified" name="Rotate" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Specifies the rotation of text within a cell.</xsd:documentation>
        </xsd:annotation>
        <xsd:simpleType>
            <xsd:restriction base="xsd:double">
                <xsd:minInclusive value="-90" />
                <xsd:maxInclusive value="90" />
            </xsd:restriction>
        </xsd:simpleType>
    </xsd:attribute>
    <xsd:attribute form="qualified" name="ShrinkToFit" type="TrueFalseType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Specifies whether text size should be shrunk so that all of the text fits within a cell.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute form="qualified" name="Vertical" use="optional" default="Automatic">
        <xsd:annotation>
            <xsd:documentation>Specifies the top-to-bottom alignment of text within a cell.</xsd:documentation>
        </xsd:annotation>
        <xsd:simpleType>
            <xsd:restriction base="xsd:string">
                <xsd:enumeration value="Automatic" />
                <xsd:enumeration value="Top" />
                <xsd:enumeration value="Bottom" />
                <xsd:enumeration value="Center" />
                <xsd:enumeration value="Justify" />
                <xsd:enumeration value="Distributed" />
                <xsd:enumeration value="JustifyDistributed" />
            </xsd:restriction>
        </xsd:simpleType>
    </xsd:attribute>
    <xsd:attribute form="qualified" name="VerticalText" type="TrueFalseType" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Specifies whether text characters are positioned to read vertically.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute form="qualified" name="WrapText" type="TrueFalseType" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Specifies whether the text in a cell should wrap at the cell boundary.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
Horizontal ss:Horizontal Automatic Optional
ReadingOrder ss:ReadingOrder Context Optional
Indent ss:Indent 0 Optional
Rotate ss:Rotate 0 Optional
ShrinkToFit ss:ShrinkToFit Optional
Vertical ss:Vertical Automatic Optional
VerticalText ss:VerticalText 0 Optional
WrapText ss:WrapText 0 Optional
Collapse Derivation Tree:
Collapse References:
ss:Alignment
