Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: ComplexType
Name: apoElt
Namespace: http://schemas.microsoft.com/office/word/2003/auxHint
Containing Schema: wordnetaux.xsd
Abstract
Documentation:
Defines an object placed using absolute positioning in HTML.
Collapse XSD Schema Diagram:

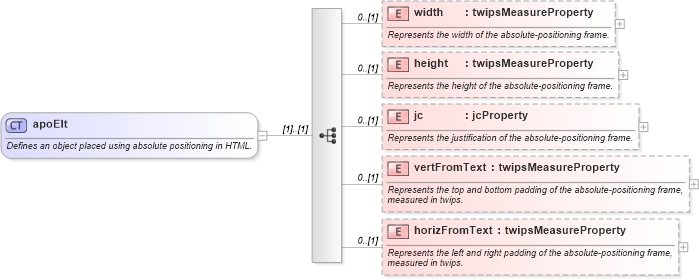

Drilldown into horizFromText in schema wordnetaux_xsd Drilldown into vertFromText in schema wordnetaux_xsd Drilldown into jc in schema wordnetaux_xsd Drilldown into height in schema wordnetaux_xsd Drilldown into width in schema wordnetaux_xsdXSD Diagram of apoElt in schema wordnetaux_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="apoElt">
    <xsd:annotation>
        <xsd:documentation>Defines an object placed using absolute positioning in HTML.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="width" type="twipsMeasureProperty" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Represents the width of the absolute-positioning frame.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="height" type="twipsMeasureProperty" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Represents the height of the absolute-positioning frame.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="jc" type="jcProperty" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Represents the justification of the absolute-positioning frame.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="vertFromText" type="twipsMeasureProperty" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Represents the top and bottom padding of the absolute-positioning frame, measured in twips.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="horizFromText" type="twipsMeasureProperty" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Represents the left and right padding of the absolute-positioning frame, measured in twips.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
width wx:width 0 (1)
height wx:height 0 (1)
jc wx:jc 0 (1)
vertFromText wx:vertFromText 0 (1)
horizFromText wx:horizFromText 0 (1)
Collapse Derivation Tree:
Collapse References:
wx:apo
