Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: ComplexType
Name: BindingType
Namespace: http://schemas.microsoft.com/office/excel/2003/xml
Containing Schema: excel2003xml.xsd
Abstract
Documentation:
Contains information necessary for connecting to an XML data source.

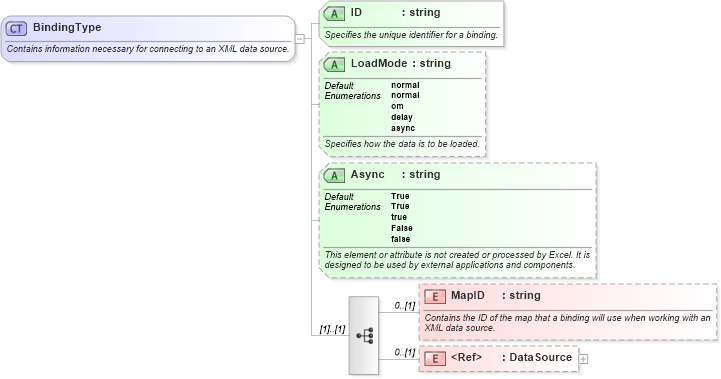

Collapse XSD Schema Diagram:
Drilldown into DataSource in schema udc_xsd Drilldown into MapID in schema excel2003xml_xsd Drilldown into Async in schema excel2003xml_xsd Drilldown into LoadMode in schema excel2003xml_xsd Drilldown into ID in schema excel2003xml_xsdXSD Diagram of BindingType in schema excel2003xml_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="BindingType">
    <xsd:annotation>
        <xsd:documentation>Contains information necessary for connecting to an XML data source.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="MapID" type="xsd:string" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Contains the ID of the map that a binding will use when working with an XML data source.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="udc:DataSource" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="ID" type="xsd:string" use="required">
        <xsd:annotation>
            <xsd:documentation>Specifies the unique identifier for a binding.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="LoadMode" use="optional" default="normal">
        <xsd:annotation>
            <xsd:documentation>Specifies how the data is to be loaded.</xsd:documentation>
        </xsd:annotation>
        <xsd:simpleType>
            <xsd:restriction base="xsd:string">
                <xsd:enumeration value="normal" />
                <xsd:enumeration value="om" />
                <xsd:enumeration value="delay" />
                <xsd:enumeration value="async" />
            </xsd:restriction>
        </xsd:simpleType>
    </xsd:attribute>
    <xsd:attribute name="Async" use="optional" default="True">
        <xsd:annotation>
            <xsd:documentation>This element or attribute is not created or processed by Excel. It is designed to be used by external applications and components.</xsd:documentation>
        </xsd:annotation>
        <xsd:simpleType>
            <xsd:restriction base="xsd:string">
                <xsd:enumeration value="True" />
                <xsd:enumeration value="true" />
                <xsd:enumeration value="False" />
                <xsd:enumeration value="false" />
            </xsd:restriction>
        </xsd:simpleType>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MapID x2:MapID 0 (1)
DataSource udc:DataSource 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ID x2:ID Required
LoadMode x2:LoadMode normal Optional
Async x2:Async True Optional
Collapse Derivation Tree:
Collapse References:
x2:Binding
