Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: ComplexType
Name: BorderType
Namespace: urn:schemas-microsoft-com:office:spreadsheet
Containing Schema: excelss.xsd
Abstract
Documentation:
Specifies the properties of a particular border within the Borders element.

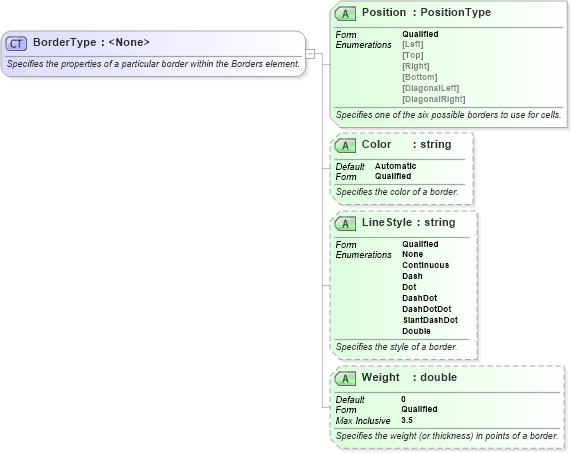

Collapse XSD Schema Diagram:
Drilldown into Weight in schema excelss_xsd Drilldown into LineStyle in schema excelss_xsd Drilldown into Color in schema excelss_xsd Drilldown into Position in schema excelss_xsdXSD Diagram of BorderType in schema excelss_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="BorderType">
    <xsd:annotation>
        <xsd:documentation>Specifies the properties of a particular border within the Borders element.</xsd:documentation>
    </xsd:annotation>
    <xsd:attribute form="qualified" name="Position" type="PositionType" use="required">
        <xsd:annotation>
            <xsd:documentation>Specifies one of the six possible borders to use for cells.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute form="qualified" name="Color" type="xsd:string" use="optional" default="Automatic">
        <xsd:annotation>
            <xsd:documentation>Specifies the color of a border.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute form="qualified" name="LineStyle" use="optional">
        <xsd:annotation>
            <xsd:documentation>Specifies the style of a border.</xsd:documentation>
        </xsd:annotation>
        <xsd:simpleType>
            <xsd:restriction base="xsd:string">
                <xsd:enumeration value="None" />
                <xsd:enumeration value="Continuous" />
                <xsd:enumeration value="Dash" />
                <xsd:enumeration value="Dot" />
                <xsd:enumeration value="DashDot" />
                <xsd:enumeration value="DashDotDot" />
                <xsd:enumeration value="SlantDashDot" />
                <xsd:enumeration value="Double" />
            </xsd:restriction>
        </xsd:simpleType>
    </xsd:attribute>
    <xsd:attribute form="qualified" name="Weight" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Specifies the weight (or thickness) in points of a border.</xsd:documentation>
        </xsd:annotation>
        <xsd:simpleType>
            <xsd:restriction base="xsd:double">
                <xsd:maxInclusive value="3.5" />
            </xsd:restriction>
        </xsd:simpleType>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
Position ss:Position Required
Color ss:Color Automatic Optional
LineStyle ss:LineStyle Optional
Weight ss:Weight 0 Optional
Collapse Derivation Tree:
Collapse References:
ss:Border
