<xsd:element name="Calendar" minOccurs="1" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation>Calendars are used to define standard working and non-working times. Projects must have one base calendar. Tasks and resources may have their own non-base calendars which are based on a base calendar.</xsd:documentation>
</xsd:annotation>
<xsd:complexType>
<xsd:sequence>
<xsd:element name="UID" type="xsd:integer">
<xsd:annotation>
<xsd:documentation>The unique identifier of the calendar.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Name" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The name of the calendar.</xsd:documentation>
</xsd:annotation>
<xsd:simpleType>
<xsd:restriction base="xsd:string">
<xsd:maxLength value="512" />
</xsd:restriction>
</xsd:simpleType>
</xsd:element>
<xsd:element name="IsBaseCalendar" type="xsd:boolean" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Whether the calendar is a base calendar.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="BaseCalendarUID" type="xsd:integer" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The unique identifier of the base calendar on which this calendar depends. Only applicable if the calendar is not a base calendar.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="WeekDays" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The collection of Weekdays that defines this calendar.</xsd:documentation>
</xsd:annotation>
<xsd:complexType>
<xsd:sequence>
<xsd:element name="WeekDay" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation>A weekday either defines regular days of the week or exception days in the calendar.</xsd:documentation>
</xsd:annotation>
<xsd:complexType>
<xsd:sequence>
<xsd:element name="DayType" minOccurs="1">
<xsd:annotation>
<xsd:documentation>The type of day. Values are: 0=Exception, 1=Monday, 2=Tuesday, 3=Wednesday, 4=Thursday, 5=Friday, 6=Saturday, 7=Sunday</xsd:documentation>
</xsd:annotation>
<xsd:simpleType>
<xsd:restriction base="xsd:integer">
<xsd:enumeration value="0" />
<xsd:enumeration value="1" />
<xsd:enumeration value="2" />
<xsd:enumeration value="3" />
<xsd:enumeration value="4" />
<xsd:enumeration value="5" />
<xsd:enumeration value="6" />
<xsd:enumeration value="7" />
</xsd:restriction>
</xsd:simpleType>
</xsd:element>
<xsd:element name="DayWorking" type="xsd:boolean" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Whether the specified date or day type is working.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="TimePeriod" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Defines a contiguous set of exception days.</xsd:documentation>
</xsd:annotation>
<xsd:complexType>
<xsd:sequence>
<xsd:element name="FromDate" type="xsd:dateTime" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The beginning of the exception time.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ToDate" type="xsd:dateTime" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The end of the exception time.</xsd:documentation>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:complexType>
</xsd:element>
<xsd:element name="WorkingTimes" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The collection of working times that define the time worked on the weekday. One of these must be present, and there may be no more than five.</xsd:documentation>
</xsd:annotation>
<xsd:complexType>
<xsd:sequence>
<xsd:choice>
<xsd:element name="WorkingTime" minOccurs="0" maxOccurs="5">
<xsd:annotation>
<xsd:documentation>Defines the working time during the weekday.</xsd:documentation>
</xsd:annotation>
<xsd:complexType>
<xsd:sequence>
<xsd:element name="FromTime" type="xsd:time" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The beginning of the working time.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ToTime" type="xsd:time" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The end of the working time.</xsd:documentation>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:complexType>
</xsd:element>
</xsd:choice>
</xsd:sequence>
</xsd:complexType>
</xsd:element>
</xsd:sequence>
</xsd:complexType>
</xsd:element>
</xsd:sequence>
</xsd:complexType>
</xsd:element>
</xsd:sequence>
</xsd:complexType>
</xsd:element>
|

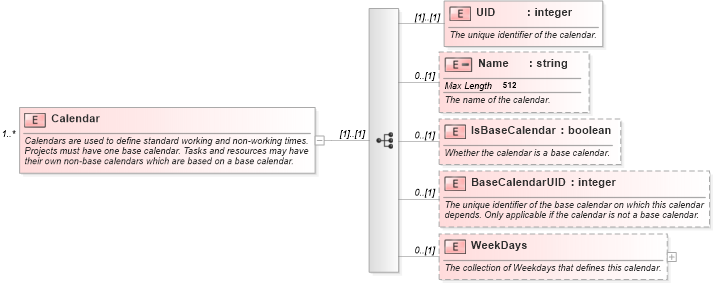

XSD Schema Diagram:
