Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: ComplexType
Name: cnfProperty
Namespace: http://schemas.microsoft.com/office/word/2003/wordml
Containing Schema: wordnet.xsd
Abstract
Documentation:
Defines the conditional formatting settings.
Collapse XSD Schema Diagram:

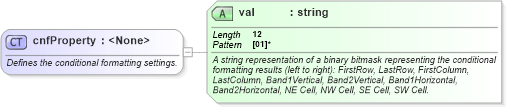

Drilldown into val in schema wordnet_xsdXSD Diagram of cnfProperty in schema wordnet_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="cnfProperty">
    <xsd:annotation>
        <xsd:documentation>Defines the conditional formatting settings.</xsd:documentation>
    </xsd:annotation>
    <xsd:attribute name="val" use="required">
        <xsd:annotation>
            <xsd:documentation>A string representation of a binary bitmask representing the conditional formatting results (left to right): FirstRow, LastRow, FirstColumn, LastColumn, Band1Vertical, Band2Vertical, Band1Horizontal, Band2Horizontal, NE Cell, NW Cell, SE Cell, SW Cell.</xsd:documentation>
        </xsd:annotation>
        <xsd:simpleType>
            <xsd:restriction base="xsd:string">
                <xsd:length value="12">
                </xsd:length>
                <xsd:pattern value="[01]*">
                </xsd:pattern>
            </xsd:restriction>
        </xsd:simpleType>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
val W:val Required
Collapse Derivation Tree:
Collapse References:
W:cnfStyle, W:cnfStyle, W:cnfStyle
