Definition Type: ComplexType
Name: columnsType
Namespace: http://schemas.microsoft.com/office/word/2003/wordml
Containing Schema: wordnet.xsd
Abstract
Documentation:
Specifies the column properties for this section.

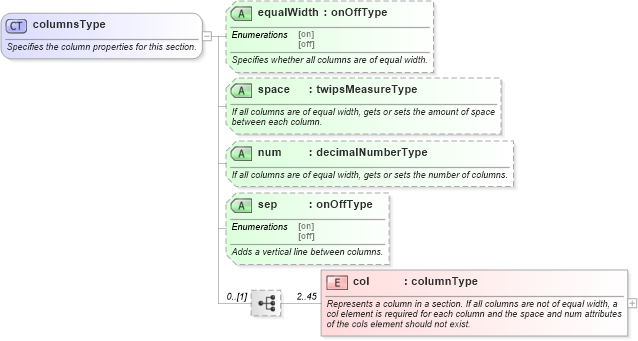

Collapse XSD Schema Diagram:
Drilldown into col in schema wordnet_xsd Drilldown into sep in schema wordnet_xsd Drilldown into num in schema wordnet_xsd Drilldown into space in schema wordnet_xsd Drilldown into equalWidth in schema wordnet_xsdXSD Diagram of columnsType in schema wordnet_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="columnsType">
    <xsd:annotation>
        <xsd:documentation>Specifies the column properties for this section.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence minOccurs="0">
        <xsd:element name="col" type="columnType" minOccurs="2" maxOccurs="45">
            <xsd:annotation>
                <xsd:documentation>Represents a column in a section. If all columns are not of equal width, a col element is required for each column and the space and num attributes of the cols element should not exist.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="equalWidth" type="onOffType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Specifies whether all columns are of equal width.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="space" type="twipsMeasureType" use="optional">
        <xsd:annotation>
            <xsd:documentation>If all columns are of equal width, gets or sets the amount of space between each column.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="num" type="decimalNumberType" use="optional">
        <xsd:annotation>
            <xsd:documentation>If all columns are of equal width, gets or sets the number of columns.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="sep" type="onOffType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Adds a vertical line between columns.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
col W:col 2 45
Collapse Child Attributes:
Name Type Default Value Use
equalWidth W:equalWidth Optional
space W:space Optional
num W:num Optional
sep W:sep Optional
Collapse Derivation Tree:
Collapse References:
W:cols
