Definition Type: ComplexType
Name: ColumnType
Namespace: urn:schemas-microsoft-com:office:excel
Containing Schema: excel.xsd
Abstract
Documentation:
Specifies the index of a row page break in a worksheet, or for a PivotList component, represents a column of cells.

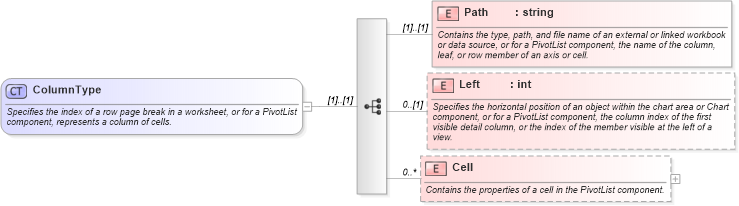

Collapse XSD Schema Diagram:
Drilldown into Cell in schema excel_xsd Drilldown into Left in schema excel_xsd Drilldown into Path in schema excel_xsdXSD Diagram of ColumnType in schema excel_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="ColumnType">
    <xsd:annotation>
        <xsd:documentation>Specifies the index of a row page break in a worksheet, or for a PivotList component, represents a column of cells.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="Path" type="xsd:string">
            <xsd:annotation>
                <xsd:documentation>Contains the type, path, and file name of an external or linked workbook or data source, or for a PivotList component, the name of the column, leaf, or row member of an axis or cell.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="Left" type="xsd:int" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Specifies the horizontal position of an object within the chart area or Chart component, or for a PivotList component, the column index of the first visible detail column, or the index of the member visible at the left of a view.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="Cell" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>Contains the properties of a cell in the PivotList component.</xsd:documentation>
            </xsd:annotation>
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="Path" type="xsd:string">
                        <xsd:annotation>
                            <xsd:documentation>Contains the type, path, and file name of an external or linked workbook or data source, or for a PivotList component, the name of the column, leaf, or row member of an axis or cell.</xsd:documentation>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="Top" type="xsd:double">
                        <xsd:annotation>
                            <xsd:documentation>Specifies the vertical position of an object within a chart area or Chart component, or for a PivotList component, the row index visible at the top of a cell or view.</xsd:documentation>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="NotInverted" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation>Specifies whether a cell's expanded state is the same as its default state.</xsd:documentation>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Path x:Path (1) (1)
Left x:Left 0 (1)
Cell x:Cell 0 unbounded
Collapse Derivation Tree:
Collapse References:
x:Column
