Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: compat
Namespace: http://schemas.microsoft.com/office/word/2003/wordml
Type: W:compatElt
Containing Schema: wordnet.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Contains compatibility options (that is, the user preferences entered on the Compatibility tab of the Options dialog in Word).

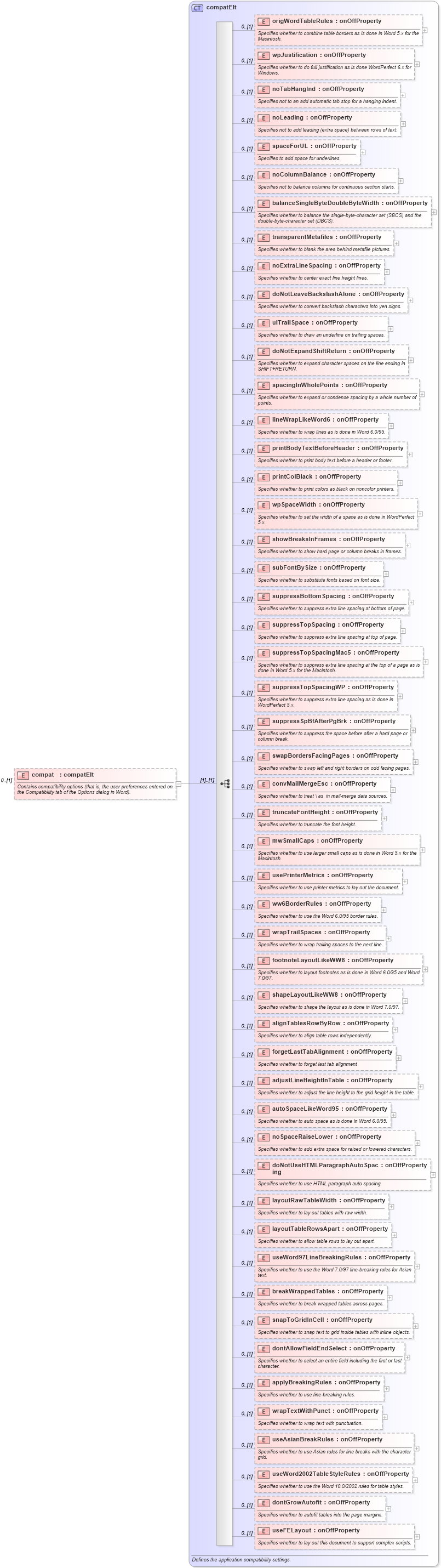

Collapse XSD Schema Diagram:
Drilldown into useFELayout in schema wordnet_xsd Drilldown into dontGrowAutofit in schema wordnet_xsd Drilldown into useWord2002TableStyleRules in schema wordnet_xsd Drilldown into useAsianBreakRules in schema wordnet_xsd Drilldown into wrapTextWithPunct in schema wordnet_xsd Drilldown into applyBreakingRules in schema wordnet_xsd Drilldown into dontAllowFieldEndSelect in schema wordnet_xsd Drilldown into snapToGridInCell in schema wordnet_xsd Drilldown into breakWrappedTables in schema wordnet_xsd Drilldown into useWord97LineBreakingRules in schema wordnet_xsd Drilldown into layoutTableRowsApart in schema wordnet_xsd Drilldown into layoutRawTableWidth in schema wordnet_xsd Drilldown into doNotUseHTMLParagraphAutoSpacing in schema wordnet_xsd Drilldown into noSpaceRaiseLower in schema wordnet_xsd Drilldown into autoSpaceLikeWord95 in schema wordnet_xsd Drilldown into adjustLineHeightInTable in schema wordnet_xsd Drilldown into forgetLastTabAlignment in schema wordnet_xsd Drilldown into alignTablesRowByRow in schema wordnet_xsd Drilldown into shapeLayoutLikeWW8 in schema wordnet_xsd Drilldown into footnoteLayoutLikeWW8 in schema wordnet_xsd Drilldown into wrapTrailSpaces in schema wordnet_xsd Drilldown into ww6BorderRules in schema wordnet_xsd Drilldown into usePrinterMetrics in schema wordnet_xsd Drilldown into mwSmallCaps in schema wordnet_xsd Drilldown into truncateFontHeight in schema wordnet_xsd Drilldown into convMailMergeEsc in schema wordnet_xsd Drilldown into swapBordersFacingPages in schema wordnet_xsd Drilldown into suppressSpBfAfterPgBrk in schema wordnet_xsd Drilldown into suppressTopSpacingWP in schema wordnet_xsd Drilldown into suppressTopSpacingMac5 in schema wordnet_xsd Drilldown into suppressTopSpacing in schema wordnet_xsd Drilldown into suppressBottomSpacing in schema wordnet_xsd Drilldown into subFontBySize in schema wordnet_xsd Drilldown into showBreaksInFrames in schema wordnet_xsd Drilldown into wpSpaceWidth in schema wordnet_xsd Drilldown into printColBlack in schema wordnet_xsd Drilldown into printBodyTextBeforeHeader in schema wordnet_xsd Drilldown into lineWrapLikeWord6 in schema wordnet_xsd Drilldown into spacingInWholePoints in schema wordnet_xsd Drilldown into doNotExpandShiftReturn in schema wordnet_xsd Drilldown into ulTrailSpace in schema wordnet_xsd Drilldown into doNotLeaveBackslashAlone in schema wordnet_xsd Drilldown into noExtraLineSpacing in schema wordnet_xsd Drilldown into transparentMetafiles in schema wordnet_xsd Drilldown into balanceSingleByteDoubleByteWidth in schema wordnet_xsd Drilldown into noColumnBalance in schema wordnet_xsd Drilldown into spaceForUL in schema wordnet_xsd Drilldown into noLeading in schema wordnet_xsd Drilldown into noTabHangInd in schema wordnet_xsd Drilldown into wpJustification in schema wordnet_xsd Drilldown into origWordTableRules in schema wordnet_xsd Drilldown into compatElt in schema wordnet_xsdXSD Diagram of compat in schema wordnet_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="compat" type="compatElt" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation>Contains compatibility options (that is, the user preferences entered on the Compatibility tab of the Options dialog in Word).</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
origWordTableRules W:origWordTableRules 0 (1)
wpJustification W:wpJustification 0 (1)
noTabHangInd W:noTabHangInd 0 (1)
noLeading W:noLeading 0 (1)
spaceForUL W:spaceForUL 0 (1)
noColumnBalance W:noColumnBalance 0 (1)
balanceSingleByteDoubleByteWidth W:balanceSingleByteDoubleByteWidth 0 (1)
transparentMetafiles W:transparentMetafiles 0 (1)
noExtraLineSpacing W:noExtraLineSpacing 0 (1)
doNotLeaveBackslashAlone W:doNotLeaveBackslashAlone 0 (1)
ulTrailSpace W:ulTrailSpace 0 (1)
doNotExpandShiftReturn W:doNotExpandShiftReturn 0 (1)
spacingInWholePoints W:spacingInWholePoints 0 (1)
lineWrapLikeWord6 W:lineWrapLikeWord6 0 (1)
printBodyTextBeforeHeader W:printBodyTextBeforeHeader 0 (1)
printColBlack W:printColBlack 0 (1)
wpSpaceWidth W:wpSpaceWidth 0 (1)
showBreaksInFrames W:showBreaksInFrames 0 (1)
subFontBySize W:subFontBySize 0 (1)
suppressBottomSpacing W:suppressBottomSpacing 0 (1)
suppressTopSpacing W:suppressTopSpacing 0 (1)
suppressTopSpacingMac5 W:suppressTopSpacingMac5 0 (1)
suppressTopSpacingWP W:suppressTopSpacingWP 0 (1)
suppressSpBfAfterPgBrk W:suppressSpBfAfterPgBrk 0 (1)
swapBordersFacingPages W:swapBordersFacingPages 0 (1)
convMailMergeEsc W:convMailMergeEsc 0 (1)
truncateFontHeight W:truncateFontHeight 0 (1)
mwSmallCaps W:mwSmallCaps 0 (1)
usePrinterMetrics W:usePrinterMetrics 0 (1)
ww6BorderRules W:ww6BorderRules 0 (1)
wrapTrailSpaces W:wrapTrailSpaces 0 (1)
footnoteLayoutLikeWW8 W:footnoteLayoutLikeWW8 0 (1)
shapeLayoutLikeWW8 W:shapeLayoutLikeWW8 0 (1)
alignTablesRowByRow W:alignTablesRowByRow 0 (1)
forgetLastTabAlignment W:forgetLastTabAlignment 0 (1)
adjustLineHeightInTable W:adjustLineHeightInTable 0 (1)
autoSpaceLikeWord95 W:autoSpaceLikeWord95 0 (1)
noSpaceRaiseLower W:noSpaceRaiseLower 0 (1)
doNotUseHTMLParagraphAutoSpacing W:doNotUseHTMLParagraphAutoSpacing 0 (1)
layoutRawTableWidth W:layoutRawTableWidth 0 (1)
layoutTableRowsApart W:layoutTableRowsApart 0 (1)
useWord97LineBreakingRules W:useWord97LineBreakingRules 0 (1)
breakWrappedTables W:breakWrappedTables 0 (1)
snapToGridInCell W:snapToGridInCell 0 (1)
dontAllowFieldEndSelect W:dontAllowFieldEndSelect 0 (1)
applyBreakingRules W:applyBreakingRules 0 (1)
wrapTextWithPunct W:wrapTextWithPunct 0 (1)
useAsianBreakRules W:useAsianBreakRules 0 (1)
useWord2002TableStyleRules W:useWord2002TableStyleRules 0 (1)
dontGrowAutofit W:dontGrowAutofit 0 (1)
useFELayout W:useFELayout 0 (1)
Collapse Derivation Tree:
