Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: ComplexType
Name: ComponentOptionsType
Namespace: urn:schemas-microsoft-com:office:component:spreadsheet
Containing Schema: c.xsd
Abstract

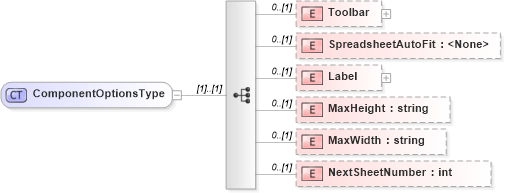

Collapse XSD Schema Diagram:
Drilldown into NextSheetNumber in schema c_xsd Drilldown into MaxWidth in schema c_xsd Drilldown into MaxHeight in schema c_xsd Drilldown into Label in schema c_xsd Drilldown into SpreadsheetAutoFit in schema c_xsd Drilldown into Toolbar in schema c_xsdXSD Diagram of ComponentOptionsType in schema c_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="ComponentOptionsType">
    <xsd:sequence>
        <xsd:element name="Toolbar" minOccurs="0">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="HideOfficeLogo" minOccurs="0" />
                </xsd:sequence>
                <xsd:attribute ref="ss:Hidden" use="optional" />
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="SpreadsheetAutoFit" minOccurs="0" />
        <xsd:element name="Label" minOccurs="0">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="Caption" type="xsd:string" />
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="MaxHeight" type="xsd:string" minOccurs="0" />
        <xsd:element name="MaxWidth" type="xsd:string" minOccurs="0" />
        <xsd:element name="NextSheetNumber" type="xsd:int" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Toolbar c:Toolbar 0 (1)
SpreadsheetAutoFit c:SpreadsheetAutoFit 0 (1)
Label c:Label 0 (1)
MaxHeight c:MaxHeight 0 (1)
MaxWidth c:MaxWidth 0 (1)
NextSheetNumber c:NextSheetNumber 0 (1)
Collapse Derivation Tree:
Collapse References:
c:ComponentOptions
