Definition Type: ComplexType
Name: Connection_Type
Namespace: http://schemas.microsoft.com/visio/2003/core
Type: nsA:NamedIndexedRow_Type
Containing Schema: visio.xsd
Abstract
Collapse XSD Schema Diagram:

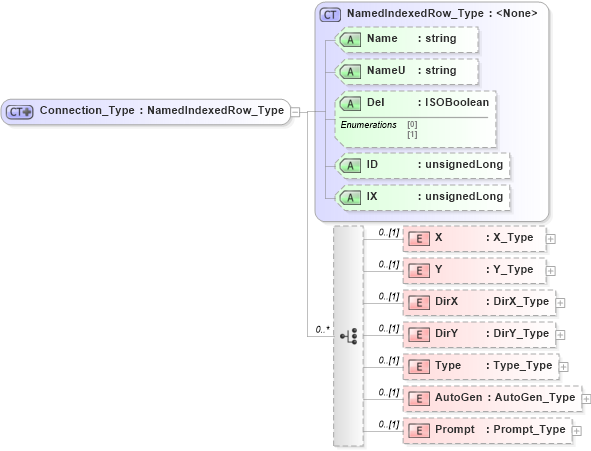

Drilldown into Prompt in schema visio_xsd Drilldown into AutoGen in schema visio_xsd Drilldown into Type in schema visio_xsd Drilldown into DirY in schema visio_xsd Drilldown into DirX in schema visio_xsd Drilldown into Y in schema visio_xsd Drilldown into X in schema visio_xsd Drilldown into IX in schema visio_xsd Drilldown into ID in schema visio_xsd Drilldown into Del in schema visio_xsd Drilldown into NameU in schema visio_xsd Drilldown into Name in schema visio_xsd Drilldown into NamedIndexedRow_Type in schema visio_xsdXSD Diagram of Connection_Type in schema visio_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="Connection_Type">
    <xsd:complexContent>
        <xsd:extension base="NamedIndexedRow_Type">
            <xsd:choice minOccurs="0" maxOccurs="unbounded">
                <xsd:element name="X" type="X_Type" minOccurs="0" />
                <xsd:element name="Y" type="Y_Type" minOccurs="0" />
                <xsd:element name="DirX" type="DirX_Type" minOccurs="0" />
                <xsd:element name="DirY" type="DirY_Type" minOccurs="0" />
                <xsd:element name="Type" type="Type_Type" minOccurs="0" />
                <xsd:element name="AutoGen" type="AutoGen_Type" minOccurs="0" />
                <xsd:element name="Prompt" type="Prompt_Type" minOccurs="0" />
            </xsd:choice>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
X nsA:X 0 (1)
Y nsA:Y 0 (1)
DirX nsA:DirX 0 (1)
DirY nsA:DirY 0 (1)
Type nsA:Type 0 (1)
AutoGen nsA:AutoGen 0 (1)
Prompt nsA:Prompt 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
Name nsA:Name (Optional)
NameU nsA:NameU (Optional)
Del nsA:Del (Optional)
ID nsA:ID (Optional)
IX nsA:IX (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:Connection
