Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: ConnectionInfo
Namespace: http://schemas.microsoft.com/data/udc
Type: udc:ConnectionInfoType
Containing Schema: udc.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Contains information specific to a particular type of data connection.

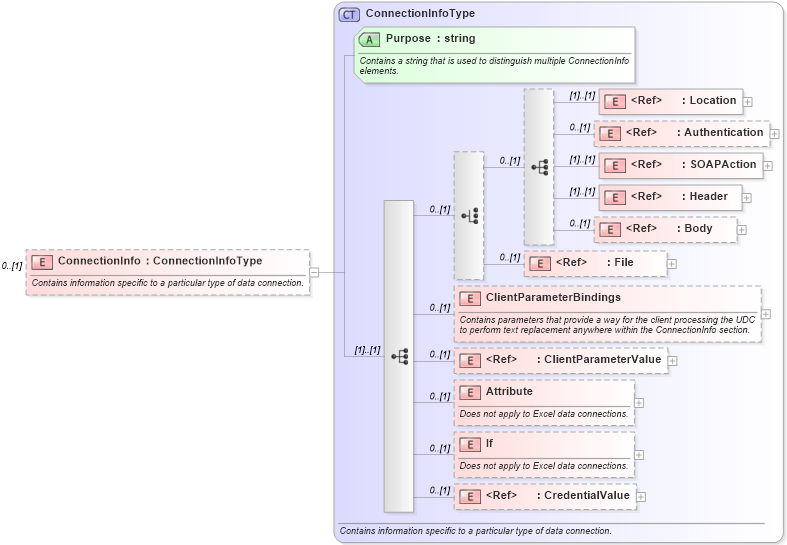

Collapse XSD Schema Diagram:
Drilldown into CredentialValue in schema udc_xsd Drilldown into If in schema udc_xsd Drilldown into Attribute in schema udc_xsd Drilldown into ClientParameterValue in schema udc_xsd Drilldown into ClientParameterBindings in schema udc_xsd Drilldown into File in schema udcxmlfile_xsd Drilldown into Body in schema soapenvelope_xsd Drilldown into Header in schema soapenvelope_xsd Drilldown into SOAPAction in schema udcsoap_xsd Drilldown into Authentication in schema udcsoap_xsd Drilldown into Location in schema udcsoap_xsd Drilldown into Purpose in schema udc_xsd Drilldown into ConnectionInfoType in schema udc_xsdXSD Diagram of ConnectionInfo in schema udc_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="ConnectionInfo" type="ConnectionInfoType" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation>Contains information specific to a particular type of data connection.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Location udcs:Location (1) (1)
Authentication udcs:Authentication 0 (1)
SOAPAction udcs:SOAPAction (1) (1)
Header tns:Header (1) (1)
Body tns:Body 0 (1)
File udcxf:File 0 (1)
ClientParameterBindings udc:ClientParameterBindings 0 (1)
ClientParameterValue udc:ClientParameterValue 0 (1)
Attribute udc:Attribute 0 (1)
If udc:If 0 (1)
CredentialValue udc:CredentialValue 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
Purpose udc:Purpose Required
Collapse Derivation Tree:
