Definition Type: Element
Name: ConstraintType
Namespace: http://schemas.microsoft.com/project
Type: integer:http://www.w3.org/2001/XMLSchema
Containing Schema: mspdi.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
ContentType Restriction
Documentation:
The constraint on the start or finish date of the task. Values are: 0=As Soon As Possible, 1=As Late As Possible, 2=Must Start On, 3=Must Finish On, 4=Start No Earlier Than, 5=Start No Later Than, 6=Finish No Earlier Than and 7=Finish No Later Than
Collapse XSD Schema Diagram:

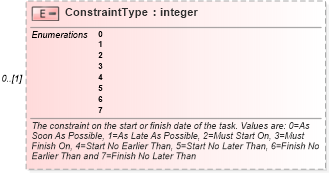

XSD Diagram of ConstraintType in schema mspdi_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="ConstraintType" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation>The constraint on the start or finish date of the task. Values are: 0=As Soon As Possible, 1=As Late As Possible, 2=Must Start On, 3=Must Finish On, 4=Start No Earlier Than, 5=Start No Later Than, 6=Finish No Earlier Than and 7=Finish No Later Than</xsd:documentation>
    </xsd:annotation>
    <xsd:simpleType>
        <xsd:restriction base="xsd:integer">
            <xsd:enumeration value="0" />
            <xsd:enumeration value="1" />
            <xsd:enumeration value="2" />
            <xsd:enumeration value="3" />
            <xsd:enumeration value="4" />
            <xsd:enumeration value="5" />
            <xsd:enumeration value="6" />
            <xsd:enumeration value="7" />
        </xsd:restriction>
    </xsd:simpleType>
</xsd:element>
Collapse Facets:
Facet Value
Enumeration 0
Enumeration 1
Enumeration 2
Enumeration 3
Enumeration 4
Enumeration 5
Enumeration 6
Enumeration 7
