Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: DataValidation
Namespace: urn:schemas-microsoft-com:office:excel
Type: x:DataValidationType
Containing Schema: excel.xsd
Abstract
Documentation:
Contains the data validation criteria, an input message, and elements related to error messages for a specified range.

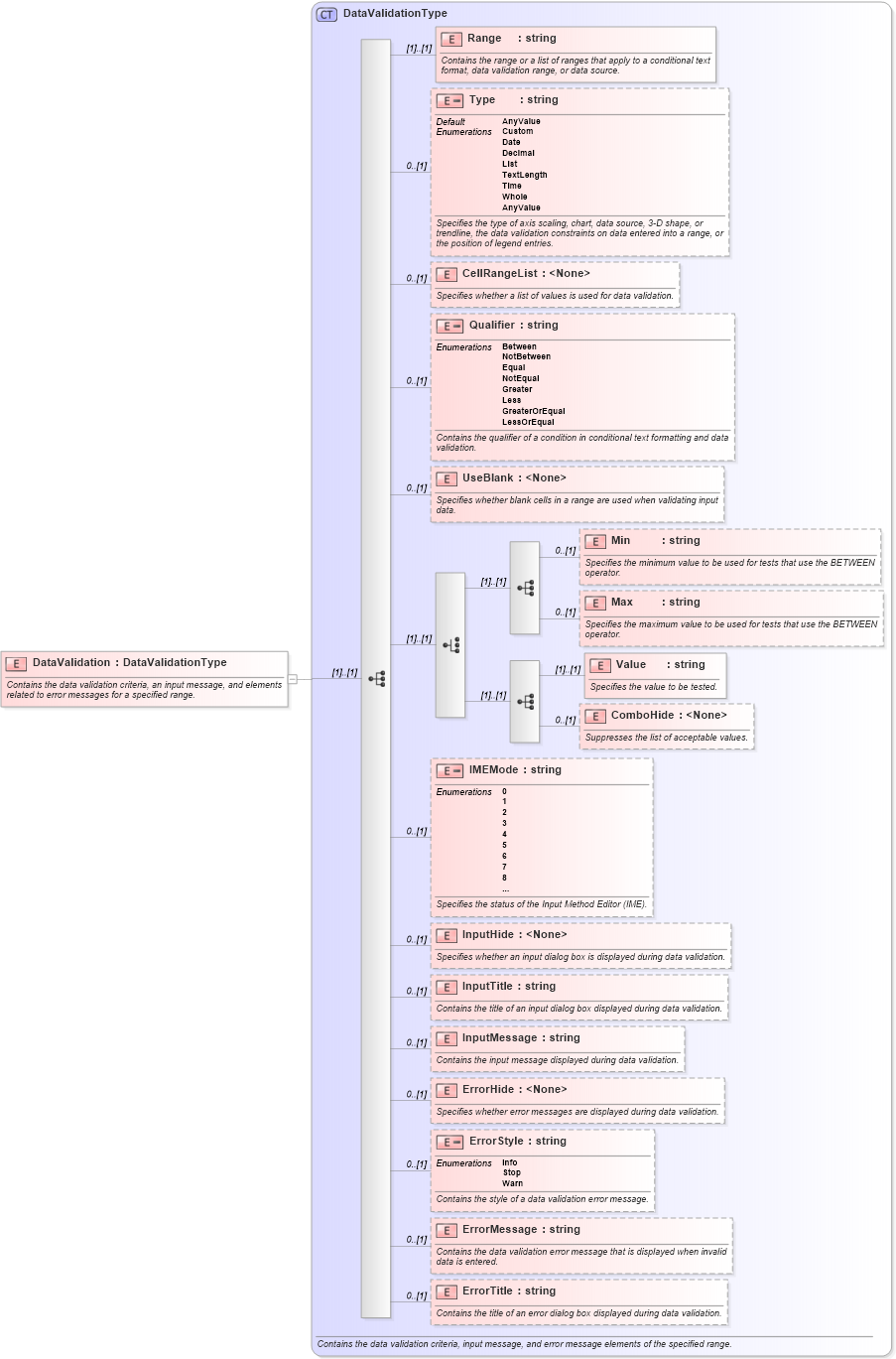

Collapse XSD Schema Diagram:
Drilldown into ErrorTitle in schema excel_xsd Drilldown into ErrorMessage in schema excel_xsd Drilldown into ErrorStyle in schema excel_xsd Drilldown into ErrorHide in schema excel_xsd Drilldown into InputMessage in schema excel_xsd Drilldown into InputTitle in schema excel_xsd Drilldown into InputHide in schema excel_xsd Drilldown into IMEMode in schema excel_xsd Drilldown into ComboHide in schema excel_xsd Drilldown into Value in schema excel_xsd Drilldown into Max in schema excel_xsd Drilldown into Min in schema excel_xsd Drilldown into UseBlank in schema excel_xsd Drilldown into Qualifier in schema excel_xsd Drilldown into CellRangeList in schema excel_xsd Drilldown into Type in schema excel_xsd Drilldown into Range in schema excel_xsd Drilldown into DataValidationType in schema excel_xsdXSD Diagram of DataValidation in schema excel_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="DataValidation" type="DataValidationType">
    <xsd:annotation>
        <xsd:documentation>Contains the data validation criteria, an input message, and elements related to error messages for a specified range.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Range x:Range (1) (1)
Type x:Type 0 (1)
CellRangeList x:CellRangeList 0 (1)
Qualifier x:Qualifier 0 (1)
UseBlank x:UseBlank 0 (1)
Min x:Min 0 (1)
Max x:Max 0 (1)
Value x:Value (1) (1)
ComboHide x:ComboHide 0 (1)
IMEMode x:IMEMode 0 (1)
InputHide x:InputHide 0 (1)
InputTitle x:InputTitle 0 (1)
InputMessage x:InputMessage 0 (1)
ErrorHide x:ErrorHide 0 (1)
ErrorStyle x:ErrorStyle 0 (1)
ErrorMessage x:ErrorMessage 0 (1)
ErrorTitle x:ErrorTitle 0 (1)
Collapse Derivation Tree:
