Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: davAdapter
Namespace: http://schemas.microsoft.com/office/infopath/2003/solutionDefinition
Containing Schema: sd.xsd
Abstract

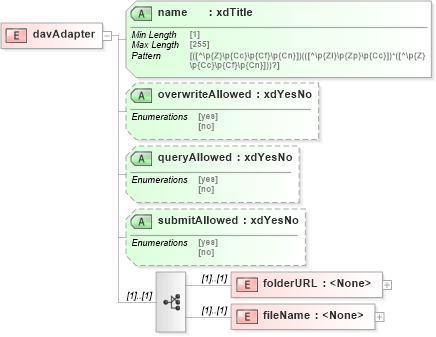

Collapse XSD Schema Diagram:
Drilldown into fileName in schema sd_xsd Drilldown into folderURL in schema sd_xsd Drilldown into submitAllowed in schema sd_xsd Drilldown into queryAllowed in schema sd_xsd Drilldown into overwriteAllowed in schema sd_xsd Drilldown into name in schema sd_xsdXSD Diagram of davAdapter in schema sd_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="davAdapter">
    <xsd:complexType>
        <xsd:all>
            <xsd:element name="folderURL">
                <xsd:complexType>
                    <xsd:attribute name="value" type="xsd:string" use="required" />
                </xsd:complexType>
            </xsd:element>
            <xsd:element name="fileName">
                <xsd:complexType>
                    <xsd:attribute name="value" type="xsd:string" use="required" />
                    <xsd:attribute name="valueType" type="xsf:xdExpressionLiteral" use="optional" />
                </xsd:complexType>
            </xsd:element>
        </xsd:all>
        <xsd:attribute name="name" type="xsf:xdTitle" use="required" />
        <xsd:attribute name="overwriteAllowed" type="xsf:xdYesNo" use="optional" />
        <xsd:attribute name="queryAllowed" type="xsf:xdYesNo" use="optional" />
        <xsd:attribute name="submitAllowed" type="xsf:xdYesNo" use="optional" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
folderURL xsf:folderURL (1) (1)
fileName xsf:fileName (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
name xsf:name Required
overwriteAllowed xsf:overwriteAllowed Optional
queryAllowed xsf:queryAllowed Optional
submitAllowed xsf:submitAllowed Optional
