Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: editWith
Namespace: http://schemas.microsoft.com/office/infopath/2003/solutionDefinition
Containing Schema: sd.xsd
Abstract

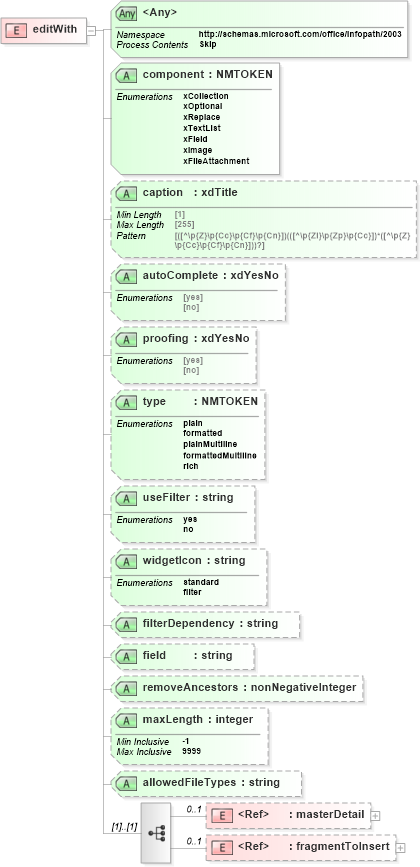

Collapse XSD Schema Diagram:
Drilldown into fragmentToInsert in schema sd_xsd Drilldown into masterDetail in schema sd_xsd Drilldown into allowedFileTypes in schema sd_xsd Drilldown into maxLength in schema sd_xsd Drilldown into removeAncestors in schema sd_xsd Drilldown into field in schema sd_xsd Drilldown into filterDependency in schema sd_xsd Drilldown into widgetIcon in schema sd_xsd Drilldown into useFilter in schema sd_xsd Drilldown into type in schema sd_xsd Drilldown into proofing in schema sd_xsd Drilldown into autoComplete in schema sd_xsd Drilldown into caption in schema sd_xsd Drilldown into component in schema sd_xsdXSD Diagram of editWith in schema sd_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="editWith">
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element ref="xsf:masterDetail" minOccurs="0" maxOccurs="1" />
            <xsd:element ref="xsf:fragmentToInsert" minOccurs="0" maxOccurs="1" />
        </xsd:sequence>
        <xsd:attribute name="component" use="required">
            <xsd:simpleType>
                <xsd:restriction base="xsd:NMTOKEN">
                    <xsd:enumeration value="xCollection" />
                    <xsd:enumeration value="xOptional" />
                    <xsd:enumeration value="xReplace" />
                    <xsd:enumeration value="xTextList" />
                    <xsd:enumeration value="xField" />
                    <xsd:enumeration value="xImage" />
                    <xsd:enumeration value="xFileAttachment" />
                </xsd:restriction>
            </xsd:simpleType>
        </xsd:attribute>
        <xsd:attribute name="caption" type="xsf:xdTitle" use="optional" />
        <xsd:attribute name="autoComplete" type="xsf:xdYesNo" use="optional" />
        <xsd:attribute name="proofing" type="xsf:xdYesNo" use="optional" />
        <xsd:attribute name="type" use="optional">
            <xsd:simpleType>
                <xsd:restriction base="xsd:NMTOKEN">
                    <xsd:enumeration value="plain" />
                    <xsd:enumeration value="formatted" />
                    <xsd:enumeration value="plainMultiline" />
                    <xsd:enumeration value="formattedMultiline" />
                    <xsd:enumeration value="rich" />
                </xsd:restriction>
            </xsd:simpleType>
        </xsd:attribute>
        <xsd:attribute name="useFilter" use="optional">
            <xsd:simpleType>
                <xsd:restriction base="xsd:string">
                    <xsd:enumeration value="yes" />
                    <xsd:enumeration value="no" />
                </xsd:restriction>
            </xsd:simpleType>
        </xsd:attribute>
        <xsd:attribute name="widgetIcon" use="optional">
            <xsd:simpleType>
                <xsd:restriction base="xsd:string">
                    <xsd:enumeration value="standard" />
                    <xsd:enumeration value="filter" />
                </xsd:restriction>
            </xsd:simpleType>
        </xsd:attribute>
        <xsd:attribute name="filterDependency" type="xsd:string" use="optional" />
        <xsd:attribute name="field" type="xsd:string" use="optional" />
        <xsd:attribute name="removeAncestors" type="xsd:nonNegativeInteger" use="optional" />
        <xsd:attribute name="maxLength" use="optional">
            <xsd:simpleType>
                <xsd:restriction base="xsd:integer">
                    <xsd:minInclusive value="-1" />
                    <xsd:maxInclusive value="9999" />
                </xsd:restriction>
            </xsd:simpleType>
        </xsd:attribute>
        <xsd:attribute name="allowedFileTypes" type="xsd:string" use="optional" />
        <xsd:anyAttribute namespace="http://schemas.microsoft.com/office/infopath/2003" processContents="skip" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
masterDetail xsf:masterDetail 0 1
fragmentToInsert xsf:fragmentToInsert 0 1
Collapse Child Attributes:
Name Type Default Value Use
component xsf:component Required
caption xsf:caption Optional
autoComplete xsf:autoComplete Optional
proofing xsf:proofing Optional
type xsf:type Optional
useFilter xsf:useFilter Optional
widgetIcon xsf:widgetIcon Optional
filterDependency xsf:filterDependency Optional
field xsf:field Optional
removeAncestors xsf:removeAncestors Optional
maxLength xsf:maxLength Optional
allowedFileTypes xsf:allowedFileTypes Optional
<anyAttribute> Allowed namespace: 'http://schemas.microsoft.com/office/infopath/2003'
