Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: emailAdapter
Namespace: http://schemas.microsoft.com/office/infopath/2003/solutionDefinition
Containing Schema: sd.xsd
Abstract

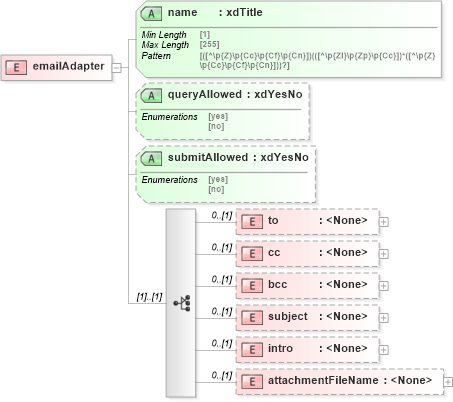

Collapse XSD Schema Diagram:
Drilldown into attachmentFileName in schema sd_xsd Drilldown into intro in schema sd_xsd Drilldown into subject in schema sd_xsd Drilldown into bcc in schema sd_xsd Drilldown into cc in schema sd_xsd Drilldown into to in schema sd_xsd Drilldown into submitAllowed in schema sd_xsd Drilldown into queryAllowed in schema sd_xsd Drilldown into name in schema sd_xsdXSD Diagram of emailAdapter in schema sd_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="emailAdapter">
    <xsd:complexType>
        <xsd:all>
            <xsd:element name="to" minOccurs="0">
                <xsd:complexType>
                    <xsd:attribute name="value" type="xsd:string" use="required" />
                    <xsd:attribute name="valueType" type="xsf:xdExpressionLiteral" use="optional" />
                </xsd:complexType>
            </xsd:element>
            <xsd:element name="cc" minOccurs="0">
                <xsd:complexType>
                    <xsd:attribute name="value" type="xsd:string" use="required" />
                    <xsd:attribute name="valueType" type="xsf:xdExpressionLiteral" use="optional" />
                </xsd:complexType>
            </xsd:element>
            <xsd:element name="bcc" minOccurs="0">
                <xsd:complexType>
                    <xsd:attribute name="value" type="xsd:string" use="required" />
                    <xsd:attribute name="valueType" type="xsf:xdExpressionLiteral" use="optional" />
                </xsd:complexType>
            </xsd:element>
            <xsd:element name="subject" minOccurs="0">
                <xsd:complexType>
                    <xsd:attribute name="value" type="xsd:string" use="required" />
                    <xsd:attribute name="valueType" type="xsf:xdExpressionLiteral" use="optional" />
                </xsd:complexType>
            </xsd:element>
            <xsd:element name="intro" minOccurs="0">
                <xsd:complexType>
                    <xsd:attribute name="value" type="xsd:string" use="required" />
                </xsd:complexType>
            </xsd:element>
            <xsd:element name="attachmentFileName" minOccurs="0">
                <xsd:complexType>
                    <xsd:attribute name="value" type="xsd:string" use="required" />
                    <xsd:attribute name="valueType" type="xsf:xdExpressionLiteral" use="optional" />
                </xsd:complexType>
            </xsd:element>
        </xsd:all>
        <xsd:attribute name="name" type="xsf:xdTitle" use="required" />
        <xsd:attribute name="queryAllowed" type="xsf:xdYesNo" use="optional" />
        <xsd:attribute name="submitAllowed" type="xsf:xdYesNo" use="optional" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
to xsf:to 0 (1)
cc xsf:cc 0 (1)
bcc xsf:bcc 0 (1)
subject xsf:subject 0 (1)
intro xsf:intro 0 (1)
attachmentFileName xsf:attachmentFileName 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
name xsf:name Required
queryAllowed xsf:queryAllowed Optional
submitAllowed xsf:submitAllowed Optional
