Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: Entry
Namespace: http://schemas.microsoft.com/office/excel/2003/xml
Type: x2:EntryType
Containing Schema: excel2003xml.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Specifies a mapping between cells and elements or attributes. There is one Entry element for each mapped cell.

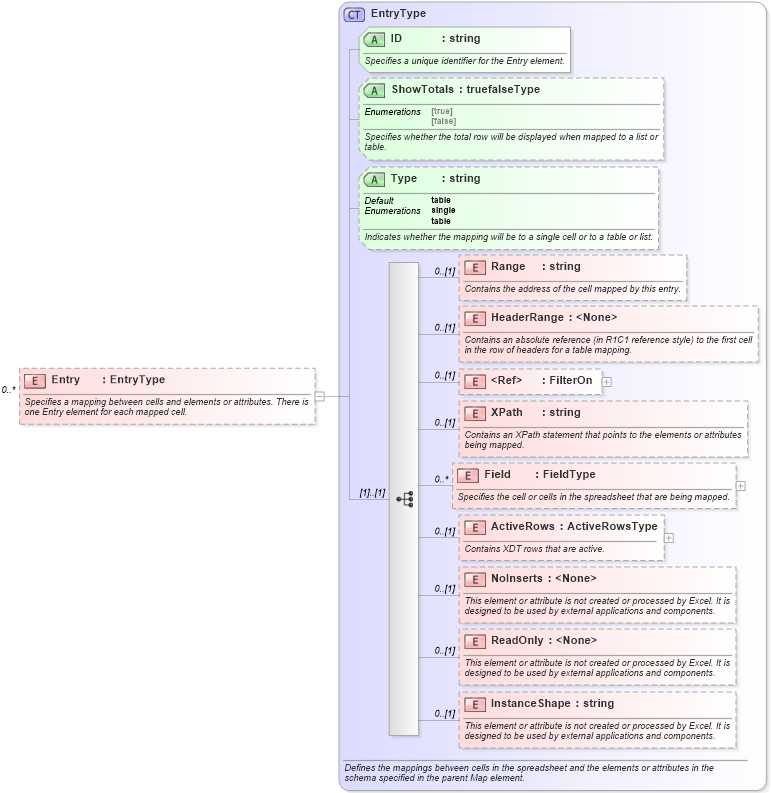

Collapse XSD Schema Diagram:
Drilldown into InstanceShape in schema excel2003xml_xsd Drilldown into ReadOnly in schema excel2003xml_xsd Drilldown into NoInserts in schema excel2003xml_xsd Drilldown into ActiveRows in schema excel2003xml_xsd Drilldown into Field in schema excel2003xml_xsd Drilldown into XPath in schema excel2003xml_xsd Drilldown into FilterOn in schema excel_xsd Drilldown into HeaderRange in schema excel2003xml_xsd Drilldown into Range in schema excel2003xml_xsd Drilldown into Type in schema excel2003xml_xsd Drilldown into ShowTotals in schema excel2003xml_xsd Drilldown into ID in schema excel2003xml_xsd Drilldown into EntryType in schema excel2003xml_xsdXSD Diagram of Entry in schema excel2003xml_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="Entry" type="EntryType" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>Specifies a mapping between cells and elements or attributes. There is one Entry element for each mapped cell.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Range x2:Range 0 (1)
HeaderRange x2:HeaderRange 0 (1)
FilterOn x:FilterOn 0 (1)
XPath x2:XPath 0 (1)
Field x2:Field 0 unbounded
ActiveRows x2:ActiveRows 0 (1)
NoInserts x2:NoInserts 0 (1)
ReadOnly x2:ReadOnly 0 (1)
InstanceShape x2:InstanceShape 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ID x2:ID Required
ShowTotals x2:ShowTotals (Optional)
Type x2:Type table Optional
Collapse Derivation Tree:
