Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: errorCondition
Namespace: http://schemas.microsoft.com/office/infopath/2003/solutionDefinition
Containing Schema: sd.xsd
Abstract

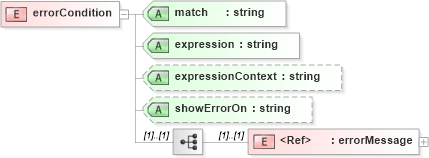

Collapse XSD Schema Diagram:
Drilldown into errorMessage in schema sd_xsd Drilldown into showErrorOn in schema sd_xsd Drilldown into expressionContext in schema sd_xsd Drilldown into expression in schema sd_xsd Drilldown into match in schema sd_xsdXSD Diagram of errorCondition in schema sd_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="errorCondition">
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element ref="xsf:errorMessage" />
        </xsd:sequence>
        <xsd:attribute name="match" type="xsd:string" use="required" />
        <xsd:attribute name="expression" type="xsd:string" use="required" />
        <xsd:attribute name="expressionContext" type="xsd:string" use="optional" />
        <xsd:attribute name="showErrorOn" type="xsd:string" use="optional" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
errorMessage xsf:errorMessage (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
match xsf:match Required
expression xsf:expression Required
expressionContext xsf:expressionContext Optional
showErrorOn xsf:showErrorOn Optional
