Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: ComplexType
Name: Event_Type
Namespace: http://schemas.microsoft.com/visio/2003/core
Type: nsA:Row_Type
Containing Schema: visio.xsd
Abstract

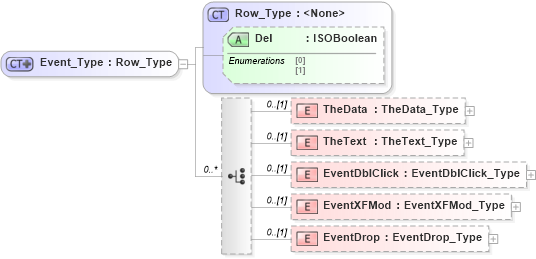

Collapse XSD Schema Diagram:
Drilldown into EventDrop in schema visio_xsd Drilldown into EventXFMod in schema visio_xsd Drilldown into EventDblClick in schema visio_xsd Drilldown into TheText in schema visio_xsd Drilldown into TheData in schema visio_xsd Drilldown into Del in schema visio_xsd Drilldown into Row_Type in schema visio_xsdXSD Diagram of Event_Type in schema visio_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="Event_Type">
    <xsd:complexContent>
        <xsd:extension base="Row_Type">
            <xsd:choice minOccurs="0" maxOccurs="unbounded">
                <xsd:element name="TheData" type="TheData_Type" minOccurs="0" />
                <xsd:element name="TheText" type="TheText_Type" minOccurs="0" />
                <xsd:element name="EventDblClick" type="EventDblClick_Type" minOccurs="0" />
                <xsd:element name="EventXFMod" type="EventXFMod_Type" minOccurs="0" />
                <xsd:element name="EventDrop" type="EventDrop_Type" minOccurs="0" />
            </xsd:choice>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TheData nsA:TheData 0 (1)
TheText nsA:TheText 0 (1)
EventDblClick nsA:EventDblClick 0 (1)
EventXFMod nsA:EventXFMod 0 (1)
EventDrop nsA:EventDrop 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
Del nsA:Del (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:Event
