Definition Type: Element
Name: ExtendedAttribute
Namespace: http://schemas.microsoft.com/project
Containing Schema: mspdi.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
The value of an extended attribute. Two pieces of data are necessary - a pointer back to the extended attribute table which is specified either by the unique ID or the Field ID, and the value which is specified either with the value, or a pointer back to the value list.

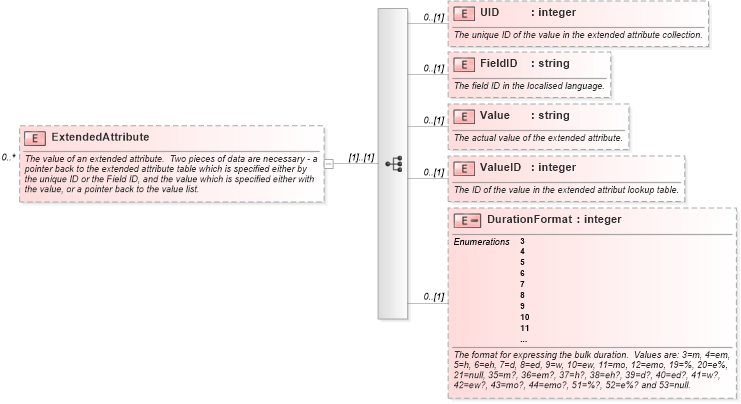

Collapse XSD Schema Diagram:
Drilldown into DurationFormat in schema mspdi_xsd Drilldown into ValueID in schema mspdi_xsd Drilldown into Value in schema mspdi_xsd Drilldown into FieldID in schema mspdi_xsd Drilldown into UID in schema mspdi_xsdXSD Diagram of ExtendedAttribute in schema mspdi_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="ExtendedAttribute" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>The value of an extended attribute.  Two pieces of data are necessary - a pointer back to the extended attribute table which is specified either by the unique ID or the Field ID, and the value which is specified either with the value, or a pointer back to the value list.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element name="UID" type="xsd:integer" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>The unique ID of the value in the extended attribute collection.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="FieldID" type="xsd:string" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>The field ID in the localised language.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="Value" type="xsd:string" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>The actual value of the extended attribute.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="ValueID" type="xsd:integer" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>The ID of the value in the extended attribut lookup table.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="DurationFormat" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>The format for expressing the bulk duration.  Values are: 3=m, 4=em, 5=h, 6=eh, 7=d, 8=ed, 9=w, 10=ew, 11=mo, 12=emo, 19=%, 20=e%, 21=null, 35=m?, 36=em?, 37=h?, 38=eh?, 39=d?, 40=ed?, 41=w?, 42=ew?, 43=mo?, 44=emo?, 51=%?, 52=e%? and 53=null.</xsd:documentation>
                </xsd:annotation>
                <xsd:simpleType>
                    <xsd:restriction base="xsd:integer">
                        <xsd:enumeration value="3" />
                        <xsd:enumeration value="4" />
                        <xsd:enumeration value="5" />
                        <xsd:enumeration value="6" />
                        <xsd:enumeration value="7" />
                        <xsd:enumeration value="8" />
                        <xsd:enumeration value="9" />
                        <xsd:enumeration value="10" />
                        <xsd:enumeration value="11" />
                        <xsd:enumeration value="12" />
                        <xsd:enumeration value="19" />
                        <xsd:enumeration value="20" />
                        <xsd:enumeration value="21" />
                        <xsd:enumeration value="35" />
                        <xsd:enumeration value="36" />
                        <xsd:enumeration value="37" />
                        <xsd:enumeration value="38" />
                        <xsd:enumeration value="39" />
                        <xsd:enumeration value="40" />
                        <xsd:enumeration value="41" />
                        <xsd:enumeration value="42" />
                        <xsd:enumeration value="43" />
                        <xsd:enumeration value="44" />
                        <xsd:enumeration value="51" />
                        <xsd:enumeration value="52" />
                        <xsd:enumeration value="53" />
                    </xsd:restriction>
                </xsd:simpleType>
            </xsd:element>
        </xsd:sequence>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
UID nsC:UID 0 (1)
FieldID nsC:FieldID 0 (1)
Value nsC:Value 0 (1)
ValueID nsC:ValueID 0 (1)
DurationFormat nsC:DurationFormat 0 (1)
