Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: externalView
Namespace: http://schemas.microsoft.com/office/infopath/2003/solutionDefinition
Containing Schema: sd.xsd
Abstract

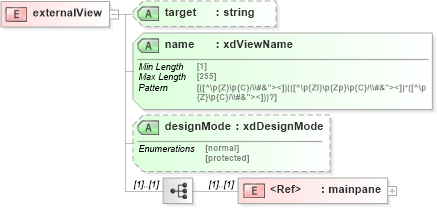

Collapse XSD Schema Diagram:
Drilldown into mainpane in schema sd_xsd Drilldown into designMode in schema sd_xsd Drilldown into name in schema sd_xsd Drilldown into target in schema sd_xsdXSD Diagram of externalView in schema sd_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="externalView">
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element ref="xsf:mainpane" />
        </xsd:sequence>
        <xsd:attribute name="target" type="xsd:string" />
        <xsd:attribute name="name" type="xsf:xdViewName" use="required" />
        <xsd:attribute name="designMode" type="xsf:xdDesignMode" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
mainpane xsf:mainpane (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
target xsf:target (Optional)
name xsf:name Required
designMode xsf:designMode (Optional)
