Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: field
Namespace: http://schemas.microsoft.com/office/infopath/2003/solutionDefinition
Containing Schema: sd.xsd
Abstract

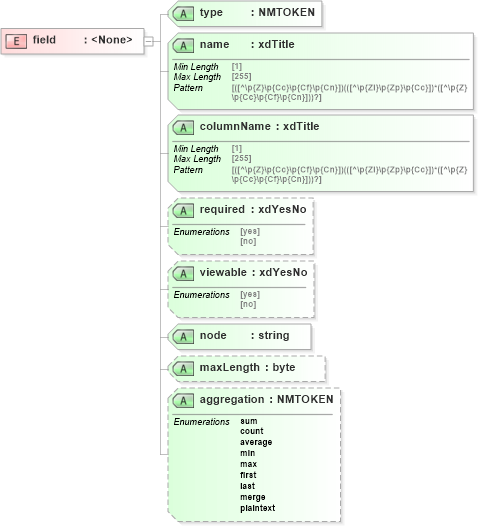

Collapse XSD Schema Diagram:
Drilldown into aggregation in schema sd_xsd Drilldown into maxLength in schema sd_xsd Drilldown into node in schema sd_xsd Drilldown into viewable in schema sd_xsd Drilldown into required in schema sd_xsd Drilldown into columnName in schema sd_xsd Drilldown into name in schema sd_xsd Drilldown into type in schema sd_xsdXSD Diagram of field in schema sd_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="field">
    <xsd:complexType>
        <xsd:attribute name="type" type="xsd:NMTOKEN" use="required" />
        <xsd:attribute name="name" type="xsf:xdTitle" use="required" />
        <xsd:attribute name="columnName" type="xsf:xdTitle" use="required" />
        <xsd:attribute name="required" type="xsf:xdYesNo" use="optional" />
        <xsd:attribute name="viewable" type="xsf:xdYesNo" use="optional" />
        <xsd:attribute name="node" type="xsd:string" use="required" />
        <xsd:attribute name="maxLength" type="xsd:byte" />
        <xsd:attribute name="aggregation" use="optional">
            <xsd:simpleType>
                <xsd:restriction base="xsd:NMTOKEN">
                    <xsd:enumeration value="sum" />
                    <xsd:enumeration value="count" />
                    <xsd:enumeration value="average" />
                    <xsd:enumeration value="min" />
                    <xsd:enumeration value="max" />
                    <xsd:enumeration value="first" />
                    <xsd:enumeration value="last" />
                    <xsd:enumeration value="merge" />
                    <xsd:enumeration value="plaintext" />
                </xsd:restriction>
            </xsd:simpleType>
        </xsd:attribute>
    </xsd:complexType>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
type xsf:type Required
name xsf:name Required
columnName xsf:columnName Required
required xsf:required Optional
viewable xsf:viewable Optional
node xsf:node Required
maxLength xsf:maxLength (Optional)
aggregation xsf:aggregation Optional
