Definition Type: ComplexType
Name: Fill_Type
Namespace: http://schemas.microsoft.com/visio/2003/core
Type: nsA:Row_Type
Containing Schema: visio.xsd
Abstract
Collapse XSD Schema Diagram:

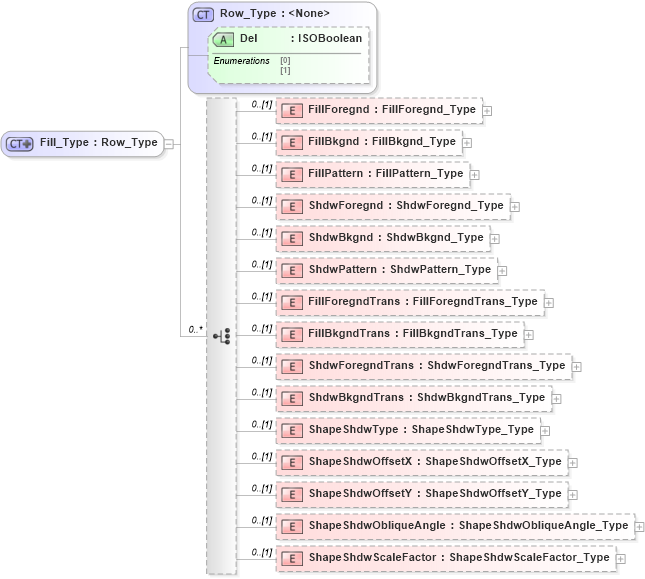

Drilldown into ShapeShdwScaleFactor in schema visio_xsd Drilldown into ShapeShdwObliqueAngle in schema visio_xsd Drilldown into ShapeShdwOffsetY in schema visio_xsd Drilldown into ShapeShdwOffsetX in schema visio_xsd Drilldown into ShapeShdwType in schema visio_xsd Drilldown into ShdwBkgndTrans in schema visio_xsd Drilldown into ShdwForegndTrans in schema visio_xsd Drilldown into FillBkgndTrans in schema visio_xsd Drilldown into FillForegndTrans in schema visio_xsd Drilldown into ShdwPattern in schema visio_xsd Drilldown into ShdwBkgnd in schema visio_xsd Drilldown into ShdwForegnd in schema visio_xsd Drilldown into FillPattern in schema visio_xsd Drilldown into FillBkgnd in schema visio_xsd Drilldown into FillForegnd in schema visio_xsd Drilldown into Del in schema visio_xsd Drilldown into Row_Type in schema visio_xsdXSD Diagram of Fill_Type in schema visio_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="Fill_Type">
    <xsd:complexContent>
        <xsd:extension base="Row_Type">
            <xsd:choice minOccurs="0" maxOccurs="unbounded">
                <xsd:element name="FillForegnd" type="FillForegnd_Type" minOccurs="0" />
                <xsd:element name="FillBkgnd" type="FillBkgnd_Type" minOccurs="0" />
                <xsd:element name="FillPattern" type="FillPattern_Type" minOccurs="0" />
                <xsd:element name="ShdwForegnd" type="ShdwForegnd_Type" minOccurs="0" />
                <xsd:element name="ShdwBkgnd" type="ShdwBkgnd_Type" minOccurs="0" />
                <xsd:element name="ShdwPattern" type="ShdwPattern_Type" minOccurs="0" />
                <xsd:element name="FillForegndTrans" type="FillForegndTrans_Type" minOccurs="0" />
                <xsd:element name="FillBkgndTrans" type="FillBkgndTrans_Type" minOccurs="0" />
                <xsd:element name="ShdwForegndTrans" type="ShdwForegndTrans_Type" minOccurs="0" />
                <xsd:element name="ShdwBkgndTrans" type="ShdwBkgndTrans_Type" minOccurs="0" />
                <xsd:element name="ShapeShdwType" type="ShapeShdwType_Type" minOccurs="0" />
                <xsd:element name="ShapeShdwOffsetX" type="ShapeShdwOffsetX_Type" minOccurs="0" />
                <xsd:element name="ShapeShdwOffsetY" type="ShapeShdwOffsetY_Type" minOccurs="0" />
                <xsd:element name="ShapeShdwObliqueAngle" type="ShapeShdwObliqueAngle_Type" minOccurs="0" />
                <xsd:element name="ShapeShdwScaleFactor" type="ShapeShdwScaleFactor_Type" minOccurs="0" />
            </xsd:choice>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FillForegnd nsA:FillForegnd 0 (1)
FillBkgnd nsA:FillBkgnd 0 (1)
FillPattern nsA:FillPattern 0 (1)
ShdwForegnd nsA:ShdwForegnd 0 (1)
ShdwBkgnd nsA:ShdwBkgnd 0 (1)
ShdwPattern nsA:ShdwPattern 0 (1)
FillForegndTrans nsA:FillForegndTrans 0 (1)
FillBkgndTrans nsA:FillBkgndTrans 0 (1)
ShdwForegndTrans nsA:ShdwForegndTrans 0 (1)
ShdwBkgndTrans nsA:ShdwBkgndTrans 0 (1)
ShapeShdwType nsA:ShapeShdwType 0 (1)
ShapeShdwOffsetX nsA:ShapeShdwOffsetX 0 (1)
ShapeShdwOffsetY nsA:ShapeShdwOffsetY 0 (1)
ShapeShdwObliqueAngle nsA:ShapeShdwObliqueAngle 0 (1)
ShapeShdwScaleFactor nsA:ShapeShdwScaleFactor 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
Del nsA:Del (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:Fill
