Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: ComplexType
Name: fillElt
Namespace: urn:schemas-microsoft-com:vml
Containing Schema: vml.xsd
Abstract

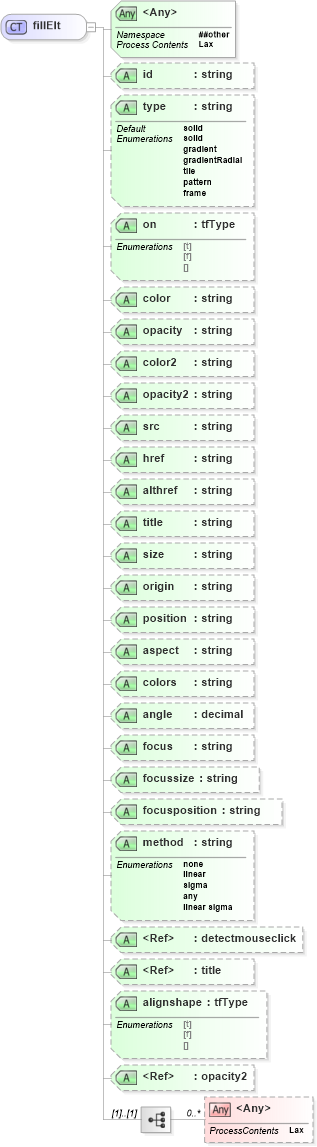

Collapse XSD Schema Diagram:
Drilldown into opacity2 in schema office_xsd Drilldown into alignshape in schema vml_xsd Drilldown into title in schema office_xsd Drilldown into detectmouseclick in schema office_xsd Drilldown into method in schema vml_xsd Drilldown into focusposition in schema vml_xsd Drilldown into focussize in schema vml_xsd Drilldown into focus in schema vml_xsd Drilldown into angle in schema vml_xsd Drilldown into colors in schema vml_xsd Drilldown into aspect in schema vml_xsd Drilldown into position in schema vml_xsd Drilldown into origin in schema vml_xsd Drilldown into size in schema vml_xsd Drilldown into title in schema vml_xsd Drilldown into althref in schema vml_xsd Drilldown into href in schema vml_xsd Drilldown into src in schema vml_xsd Drilldown into opacity2 in schema vml_xsd Drilldown into color2 in schema vml_xsd Drilldown into opacity in schema vml_xsd Drilldown into color in schema vml_xsd Drilldown into on in schema vml_xsd Drilldown into type in schema vml_xsd Drilldown into id in schema vml_xsdXSD Diagram of fillElt in schema vml_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="fillElt">
    <xsd:sequence>
        <xsd:any processContents="lax" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:string" use="optional" />
    <xsd:attribute name="type" use="optional" default="solid">
        <xsd:simpleType>
            <xsd:restriction base="xsd:string">
                <xsd:enumeration value="solid" />
                <xsd:enumeration value="gradient" />
                <xsd:enumeration value="gradientRadial" />
                <xsd:enumeration value="tile" />
                <xsd:enumeration value="pattern" />
                <xsd:enumeration value="frame" />
            </xsd:restriction>
        </xsd:simpleType>
    </xsd:attribute>
    <xsd:attribute name="on" type="tfType" use="optional" />
    <xsd:attribute name="color" type="xsd:string" use="optional" />
    <xsd:attribute name="opacity" type="xsd:string" use="optional" />
    <xsd:attribute name="color2" type="xsd:string" use="optional" />
    <xsd:attribute name="opacity2" type="xsd:string" use="optional" />
    <xsd:attribute name="src" type="xsd:string" use="optional" />
    <xsd:attribute name="href" type="xsd:string" use="optional" />
    <xsd:attribute name="althref" type="xsd:string" use="optional" />
    <xsd:attribute name="title" type="xsd:string" use="optional" />
    <xsd:attribute name="size" type="xsd:string" use="optional" />
    <xsd:attribute name="origin" type="xsd:string" use="optional" />
    <xsd:attribute name="position" type="xsd:string" use="optional" />
    <xsd:attribute name="aspect" type="xsd:string" use="optional" />
    <xsd:attribute name="colors" type="xsd:string" use="optional" />
    <xsd:attribute name="angle" type="xsd:decimal" use="optional" />
    <xsd:attribute name="focus" type="xsd:string" use="optional" />
    <xsd:attribute name="focussize" type="xsd:string" use="optional" />
    <xsd:attribute name="focusposition" type="xsd:string" use="optional" />
    <xsd:attribute name="method" use="optional">
        <xsd:simpleType>
            <xsd:restriction base="xsd:string">
                <xsd:enumeration value="none" />
                <xsd:enumeration value="linear" />
                <xsd:enumeration value="sigma" />
                <xsd:enumeration value="any" />
                <xsd:enumeration value="linear sigma" />
            </xsd:restriction>
        </xsd:simpleType>
    </xsd:attribute>
    <xsd:attribute ref="o:detectmouseclick" use="optional" />
    <xsd:attribute ref="o:title" use="optional" />
    <xsd:attribute name="alignshape" use="optional" type="tfType" />
    <xsd:attribute ref="o:opacity2" use="optional" />
    <xsd:anyAttribute namespace="##other" processContents="lax" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:any> 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id v:id Optional
type v:type solid Optional
on v:on Optional
color v:color Optional
opacity v:opacity Optional
color2 v:color2 Optional
opacity2 v:opacity2 Optional
src v:src Optional
href v:href Optional
althref v:althref Optional
title v:title Optional
size v:size Optional
origin v:origin Optional
position v:position Optional
aspect v:aspect Optional
colors v:colors Optional
angle v:angle Optional
focus v:focus Optional
focussize v:focussize Optional
focusposition v:focusposition Optional
method v:method Optional
detectmouseclick o:detectmouseclick Optional
title o:title Optional
alignshape v:alignshape Optional
opacity2 o:opacity2 Optional
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
v:fill
