Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: ComplexType
Name: FontType
Namespace: urn:schemas-microsoft-com:office:spreadsheet
Containing Schema: excelss.xsd
Abstract
Documentation:
Defines the font attributes to use in a style.

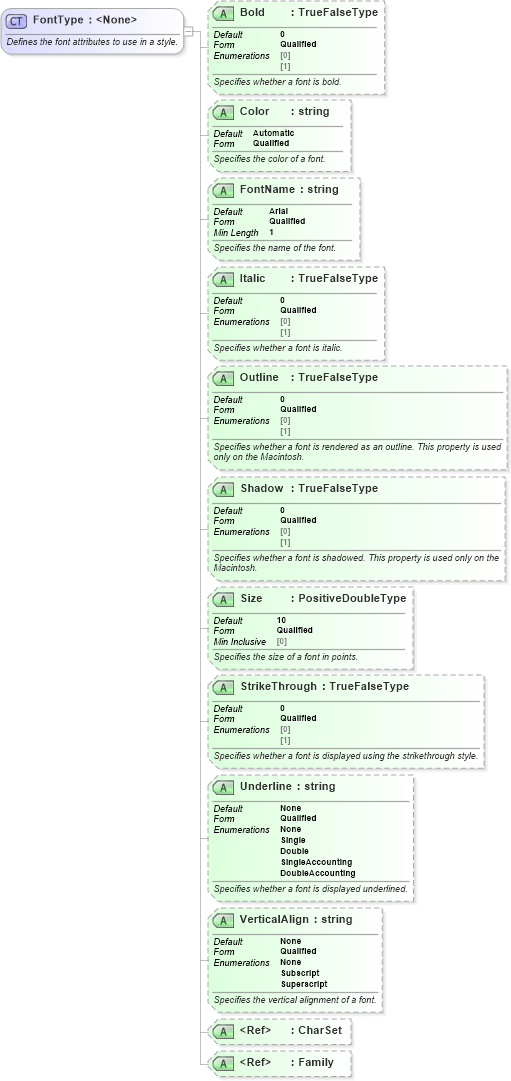

Collapse XSD Schema Diagram:
Drilldown into Family in schema excel_xsd Drilldown into CharSet in schema excel_xsd Drilldown into VerticalAlign in schema excelss_xsd Drilldown into Underline in schema excelss_xsd Drilldown into StrikeThrough in schema excelss_xsd Drilldown into Size in schema excelss_xsd Drilldown into Shadow in schema excelss_xsd Drilldown into Outline in schema excelss_xsd Drilldown into Italic in schema excelss_xsd Drilldown into FontName in schema excelss_xsd Drilldown into Color in schema excelss_xsd Drilldown into Bold in schema excelss_xsdXSD Diagram of FontType in schema excelss_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="FontType">
    <xsd:annotation>
        <xsd:documentation>Defines the font attributes to use in a style.</xsd:documentation>
    </xsd:annotation>
    <xsd:attribute form="qualified" name="Bold" type="TrueFalseType" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Specifies whether a font is bold.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute form="qualified" name="Color" type="xsd:string" use="optional" default="Automatic">
        <xsd:annotation>
            <xsd:documentation>Specifies the color of a font.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute form="qualified" name="FontName" use="optional" default="Arial">
        <xsd:annotation>
            <xsd:documentation>Specifies the name of the font.</xsd:documentation>
        </xsd:annotation>
        <xsd:simpleType>
            <xsd:restriction base="xsd:string">
                <xsd:minLength value="1" />
            </xsd:restriction>
        </xsd:simpleType>
    </xsd:attribute>
    <xsd:attribute form="qualified" name="Italic" type="TrueFalseType" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Specifies whether a font is italic.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute form="qualified" name="Outline" type="TrueFalseType" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Specifies whether a font is rendered as an outline. This property is used only on the Macintosh.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute form="qualified" name="Shadow" type="TrueFalseType" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Specifies whether a font is shadowed. This property is used only on the Macintosh.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute form="qualified" name="Size" type="PositiveDoubleType" use="optional" default="10">
        <xsd:annotation>
            <xsd:documentation>Specifies the size of a font in points.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute form="qualified" name="StrikeThrough" type="TrueFalseType" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Specifies whether a font is displayed using the strikethrough style.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute form="qualified" name="Underline" use="optional" default="None">
        <xsd:annotation>
            <xsd:documentation>Specifies whether a font is displayed underlined.</xsd:documentation>
        </xsd:annotation>
        <xsd:simpleType>
            <xsd:restriction base="xsd:string">
                <xsd:enumeration value="None" />
                <xsd:enumeration value="Single" />
                <xsd:enumeration value="Double" />
                <xsd:enumeration value="SingleAccounting" />
                <xsd:enumeration value="DoubleAccounting" />
            </xsd:restriction>
        </xsd:simpleType>
    </xsd:attribute>
    <xsd:attribute form="qualified" name="VerticalAlign" use="optional" default="None">
        <xsd:annotation>
            <xsd:documentation>Specifies the vertical alignment of a font.</xsd:documentation>
        </xsd:annotation>
        <xsd:simpleType>
            <xsd:restriction base="xsd:string">
                <xsd:enumeration value="None" />
                <xsd:enumeration value="Subscript" />
                <xsd:enumeration value="Superscript" />
            </xsd:restriction>
        </xsd:simpleType>
    </xsd:attribute>
    <xsd:attribute ref="x:CharSet" use="optional" />
    <xsd:attribute ref="x:Family" use="optional" />
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
Bold ss:Bold 0 Optional
Color ss:Color Automatic Optional
FontName ss:FontName Arial Optional
Italic ss:Italic 0 Optional
Outline ss:Outline 0 Optional
Shadow ss:Shadow 0 Optional
Size ss:Size 10 Optional
StrikeThrough ss:StrikeThrough 0 Optional
Underline ss:Underline None Optional
VerticalAlign ss:VerticalAlign None Optional
CharSet x:CharSet Optional
Family x:Family Optional
Collapse Derivation Tree:
Collapse References:
ss:Font
