Definition Type: ComplexType
Name: Geom_Type
Namespace: http://schemas.microsoft.com/visio/2003/core
Type: nsA:GeomSection_Type
Containing Schema: visio.xsd
Abstract
Collapse XSD Schema Diagram:

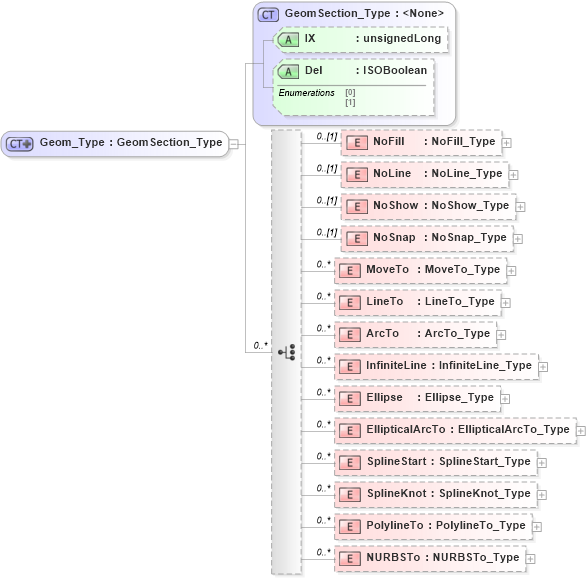

Drilldown into NURBSTo in schema visio_xsd Drilldown into PolylineTo in schema visio_xsd Drilldown into SplineKnot in schema visio_xsd Drilldown into SplineStart in schema visio_xsd Drilldown into EllipticalArcTo in schema visio_xsd Drilldown into Ellipse in schema visio_xsd Drilldown into InfiniteLine in schema visio_xsd Drilldown into ArcTo in schema visio_xsd Drilldown into LineTo in schema visio_xsd Drilldown into MoveTo in schema visio_xsd Drilldown into NoSnap in schema visio_xsd Drilldown into NoShow in schema visio_xsd Drilldown into NoLine in schema visio_xsd Drilldown into NoFill in schema visio_xsd Drilldown into Del in schema visio_xsd Drilldown into IX in schema visio_xsd Drilldown into GeomSection_Type in schema visio_xsdXSD Diagram of Geom_Type in schema visio_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="Geom_Type">
    <xsd:complexContent>
        <xsd:extension base="GeomSection_Type">
            <xsd:choice minOccurs="0" maxOccurs="unbounded">
                <xsd:element name="NoFill" type="NoFill_Type" minOccurs="0" />
                <xsd:element name="NoLine" type="NoLine_Type" minOccurs="0" />
                <xsd:element name="NoShow" type="NoShow_Type" minOccurs="0" />
                <xsd:element name="NoSnap" type="NoSnap_Type" minOccurs="0" />
                <xsd:element name="MoveTo" type="MoveTo_Type" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="LineTo" type="LineTo_Type" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="ArcTo" type="ArcTo_Type" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="InfiniteLine" type="InfiniteLine_Type" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="Ellipse" type="Ellipse_Type" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="EllipticalArcTo" type="EllipticalArcTo_Type" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="SplineStart" type="SplineStart_Type" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="SplineKnot" type="SplineKnot_Type" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="PolylineTo" type="PolylineTo_Type" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="NURBSTo" type="NURBSTo_Type" minOccurs="0" maxOccurs="unbounded" />
            </xsd:choice>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
NoFill nsA:NoFill 0 (1)
NoLine nsA:NoLine 0 (1)
NoShow nsA:NoShow 0 (1)
NoSnap nsA:NoSnap 0 (1)
MoveTo nsA:MoveTo 0 unbounded
LineTo nsA:LineTo 0 unbounded
ArcTo nsA:ArcTo 0 unbounded
InfiniteLine nsA:InfiniteLine 0 unbounded
Ellipse nsA:Ellipse 0 unbounded
EllipticalArcTo nsA:EllipticalArcTo 0 unbounded
SplineStart nsA:SplineStart 0 unbounded
SplineKnot nsA:SplineKnot 0 unbounded
PolylineTo nsA:PolylineTo 0 unbounded
NURBSTo nsA:NURBSTo 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
IX nsA:IX (Optional)
Del nsA:Del (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:Geom
