Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: Group
Namespace: http://schemas.microsoft.com/visio/2003/core
Type: nsA:Group_Type
Containing Schema: visio.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

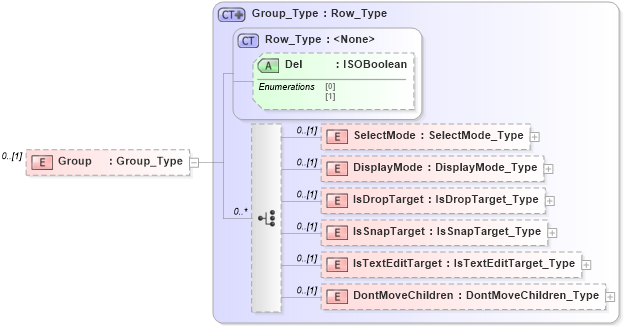

Collapse XSD Schema Diagram:
Drilldown into DontMoveChildren in schema visio_xsd Drilldown into IsTextEditTarget in schema visio_xsd Drilldown into IsSnapTarget in schema visio_xsd Drilldown into IsDropTarget in schema visio_xsd Drilldown into DisplayMode in schema visio_xsd Drilldown into SelectMode in schema visio_xsd Drilldown into Del in schema visio_xsd Drilldown into Row_Type in schema visio_xsd Drilldown into Group_Type in schema visio_xsdXSD Diagram of Group in schema visio_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="Group" type="Group_Type" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SelectMode nsA:SelectMode 0 (1)
DisplayMode nsA:DisplayMode 0 (1)
IsDropTarget nsA:IsDropTarget 0 (1)
IsSnapTarget nsA:IsSnapTarget 0 (1)
IsTextEditTarget nsA:IsTextEditTarget 0 (1)
DontMoveChildren nsA:DontMoveChildren 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
Del nsA:Del (Optional)
Collapse Derivation Tree:
