Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: GroupDefinition
Namespace: urn:schemas-microsoft-com:office:excel
Type: x:GroupDefinitionType
Containing Schema: excel.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Describes a particular grouping of OLAP members in a hierarchy level in an OLAP-based PivotTable view or report.

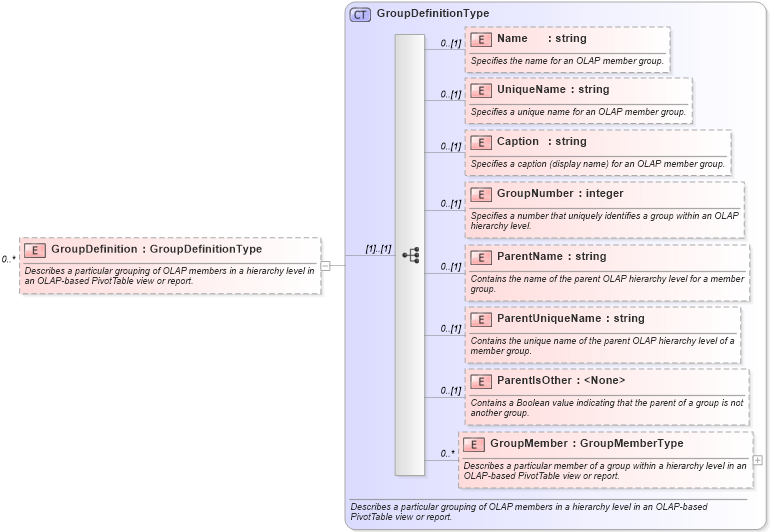

Collapse XSD Schema Diagram:
Drilldown into GroupMember in schema excel_xsd Drilldown into ParentIsOther in schema excel_xsd Drilldown into ParentUniqueName in schema excel_xsd Drilldown into ParentName in schema excel_xsd Drilldown into GroupNumber in schema excel_xsd Drilldown into Caption in schema excel_xsd Drilldown into UniqueName in schema excel_xsd Drilldown into Name in schema excel_xsd Drilldown into GroupDefinitionType in schema excel_xsdXSD Diagram of GroupDefinition in schema excel_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="GroupDefinition" type="GroupDefinitionType" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>Describes a particular grouping of OLAP members in a hierarchy level in an OLAP-based PivotTable view or report.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name x:Name 0 (1)
UniqueName x:UniqueName 0 (1)
Caption x:Caption 0 (1)
GroupNumber x:GroupNumber 0 (1)
ParentName x:ParentName 0 (1)
ParentUniqueName x:ParentUniqueName 0 (1)
ParentIsOther x:ParentIsOther 0 (1)
GroupMember x:GroupMember 0 unbounded
Collapse Derivation Tree:
