Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: hdrShapeDefaults
Namespace: http://schemas.microsoft.com/office/word/2003/wordml
Type: W:shapeDefaultsElt
Containing Schema: wordnet.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Represents wrapper for the shape defaults of the headers and footers.

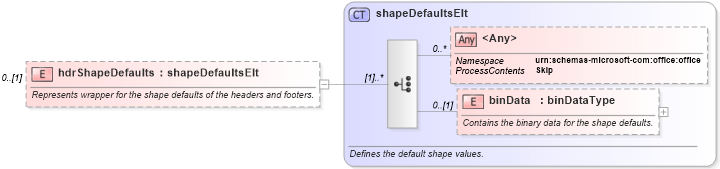

Collapse XSD Schema Diagram:
Drilldown into binData in schema wordnet_xsd Drilldown into shapeDefaultsElt in schema wordnet_xsdXSD Diagram of hdrShapeDefaults in schema wordnet_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="hdrShapeDefaults" type="shapeDefaultsElt" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation>Represents wrapper for the shape defaults of the headers and footers.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
binData W:binData 0 (1)
<xs:any> Allowed namespace: 'urn:schemas-microsoft-com:office:office' 0 unbounded
Collapse Derivation Tree:
