Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: Hyperlink
Namespace: http://schemas.microsoft.com/visio/2003/core
Type: nsA:Hyperlink_Type
Containing Schema: visio.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

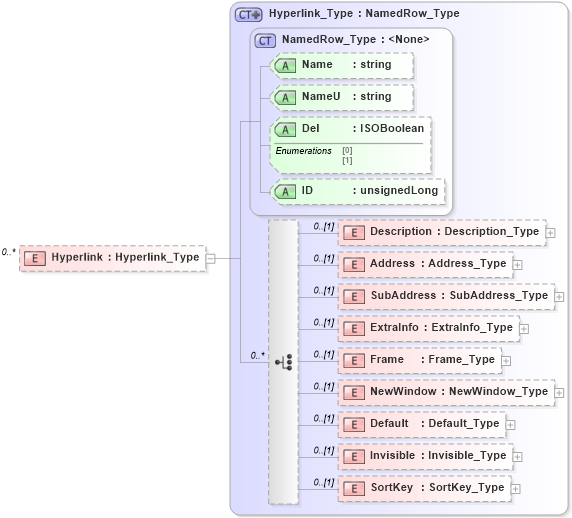

Collapse XSD Schema Diagram:
Drilldown into SortKey in schema visio_xsd Drilldown into Invisible in schema visio_xsd Drilldown into Default in schema visio_xsd Drilldown into NewWindow in schema visio_xsd Drilldown into Frame in schema visio_xsd Drilldown into ExtraInfo in schema visio_xsd Drilldown into SubAddress in schema visio_xsd Drilldown into Address in schema visio_xsd Drilldown into Description in schema visio_xsd Drilldown into ID in schema visio_xsd Drilldown into Del in schema visio_xsd Drilldown into NameU in schema visio_xsd Drilldown into Name in schema visio_xsd Drilldown into NamedRow_Type in schema visio_xsd Drilldown into Hyperlink_Type in schema visio_xsdXSD Diagram of Hyperlink in schema visio_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="Hyperlink" type="Hyperlink_Type" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Description nsA:Description 0 (1)
Address nsA:Address 0 (1)
SubAddress nsA:SubAddress 0 (1)
ExtraInfo nsA:ExtraInfo 0 (1)
Frame nsA:Frame 0 (1)
NewWindow nsA:NewWindow 0 (1)
Default nsA:Default 0 (1)
Invisible nsA:Invisible 0 (1)
SortKey nsA:SortKey 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
Name nsA:Name (Optional)
NameU nsA:NameU (Optional)
Del nsA:Del (Optional)
ID nsA:ID (Optional)
Collapse Derivation Tree:
