Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: Image
Namespace: http://schemas.microsoft.com/office/onenote/2004/import
Type: nsB:ImageContent
Containing Schema: SimpleImport.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

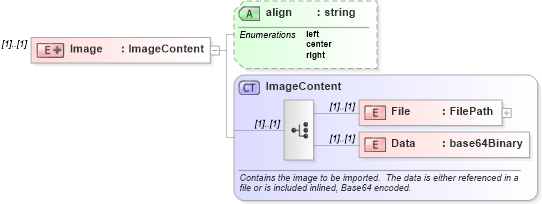

Collapse XSD Schema Diagram:
Drilldown into Data in schema simpleimport_xsd Drilldown into File in schema simpleimport_xsd Drilldown into ImageContent in schema simpleimport_xsd Drilldown into align in schema simpleimport_xsdXSD Diagram of Image in schema simpleimport_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="Image">
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="ImageContent">
                <xsd:attribute name="align">
                    <xsd:simpleType>
                        <xsd:restriction base="xsd:string">
                            <xsd:enumeration value="left" />
                            <xsd:enumeration value="center" />
                            <xsd:enumeration value="right" />
                        </xsd:restriction>
                    </xsd:simpleType>
                </xsd:attribute>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
File nsB:File (1) (1)
Data nsB:Data (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
align nsB:align (Optional)
Collapse Derivation Tree:
