Definition Type: ComplexType
Name: Layer_Type
Namespace: http://schemas.microsoft.com/visio/2003/core
Type: nsA:IndexedRow_Type
Containing Schema: visio.xsd
Abstract
Collapse XSD Schema Diagram:

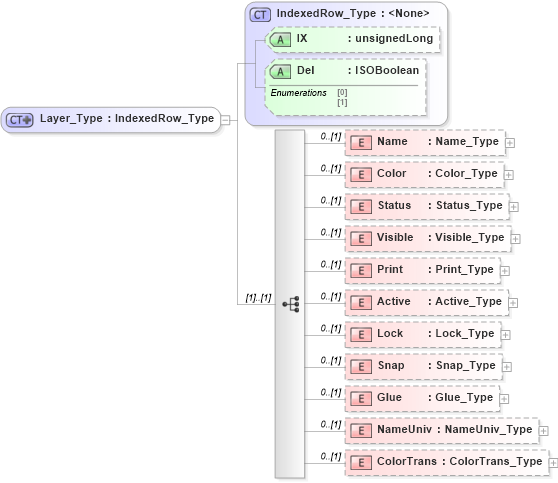

Drilldown into ColorTrans in schema visio_xsd Drilldown into NameUniv in schema visio_xsd Drilldown into Glue in schema visio_xsd Drilldown into Snap in schema visio_xsd Drilldown into Lock in schema visio_xsd Drilldown into Active in schema visio_xsd Drilldown into Print in schema visio_xsd Drilldown into Visible in schema visio_xsd Drilldown into Status in schema visio_xsd Drilldown into Color in schema visio_xsd Drilldown into Name in schema visio_xsd Drilldown into Del in schema visio_xsd Drilldown into IX in schema visio_xsd Drilldown into IndexedRow_Type in schema visio_xsdXSD Diagram of Layer_Type in schema visio_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="Layer_Type">
    <xsd:complexContent>
        <xsd:extension base="IndexedRow_Type">
            <xsd:sequence>
                <xsd:element name="Name" type="Name_Type" minOccurs="0" />
                <xsd:element name="Color" type="Color_Type" minOccurs="0" />
                <xsd:element name="Status" type="Status_Type" minOccurs="0" />
                <xsd:element name="Visible" type="Visible_Type" minOccurs="0" />
                <xsd:element name="Print" type="Print_Type" minOccurs="0" />
                <xsd:element name="Active" type="Active_Type" minOccurs="0" />
                <xsd:element name="Lock" type="Lock_Type" minOccurs="0" />
                <xsd:element name="Snap" type="Snap_Type" minOccurs="0" />
                <xsd:element name="Glue" type="Glue_Type" minOccurs="0" />
                <xsd:element name="NameUniv" type="NameUniv_Type" minOccurs="0" />
                <xsd:element name="ColorTrans" type="ColorTrans_Type" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name nsA:Name 0 (1)
Color nsA:Color 0 (1)
Status nsA:Status 0 (1)
Visible nsA:Visible 0 (1)
Print nsA:Print 0 (1)
Active nsA:Active 0 (1)
Lock nsA:Lock 0 (1)
Snap nsA:Snap 0 (1)
Glue nsA:Glue 0 (1)
NameUniv nsA:NameUniv 0 (1)
ColorTrans nsA:ColorTrans 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
IX nsA:IX (Optional)
Del nsA:Del (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:Layer
