Definition Type: ComplexType
Name: Line_Type
Namespace: http://schemas.microsoft.com/visio/2003/core
Type: nsA:Row_Type
Containing Schema: visio.xsd
Abstract
Collapse XSD Schema Diagram:

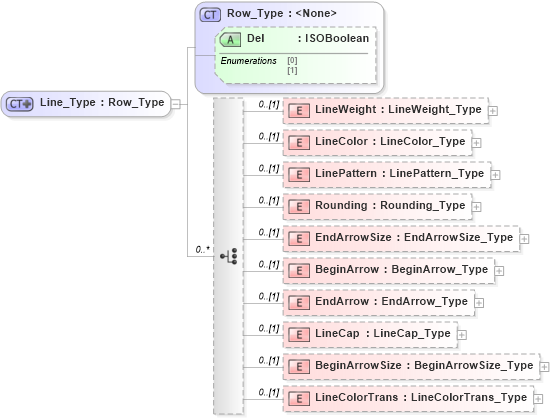

Drilldown into LineColorTrans in schema visio_xsd Drilldown into BeginArrowSize in schema visio_xsd Drilldown into LineCap in schema visio_xsd Drilldown into EndArrow in schema visio_xsd Drilldown into BeginArrow in schema visio_xsd Drilldown into EndArrowSize in schema visio_xsd Drilldown into Rounding in schema visio_xsd Drilldown into LinePattern in schema visio_xsd Drilldown into LineColor in schema visio_xsd Drilldown into LineWeight in schema visio_xsd Drilldown into Del in schema visio_xsd Drilldown into Row_Type in schema visio_xsdXSD Diagram of Line_Type in schema visio_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="Line_Type">
    <xsd:complexContent>
        <xsd:extension base="Row_Type">
            <xsd:choice minOccurs="0" maxOccurs="unbounded">
                <xsd:element name="LineWeight" type="LineWeight_Type" minOccurs="0" />
                <xsd:element name="LineColor" type="LineColor_Type" minOccurs="0" />
                <xsd:element name="LinePattern" type="LinePattern_Type" minOccurs="0" />
                <xsd:element name="Rounding" type="Rounding_Type" minOccurs="0" />
                <xsd:element name="EndArrowSize" type="EndArrowSize_Type" minOccurs="0" />
                <xsd:element name="BeginArrow" type="BeginArrow_Type" minOccurs="0" />
                <xsd:element name="EndArrow" type="EndArrow_Type" minOccurs="0" />
                <xsd:element name="LineCap" type="LineCap_Type" minOccurs="0" />
                <xsd:element name="BeginArrowSize" type="BeginArrowSize_Type" minOccurs="0" />
                <xsd:element name="LineColorTrans" type="LineColorTrans_Type" minOccurs="0" />
            </xsd:choice>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineWeight nsA:LineWeight 0 (1)
LineColor nsA:LineColor 0 (1)
LinePattern nsA:LinePattern 0 (1)
Rounding nsA:Rounding 0 (1)
EndArrowSize nsA:EndArrowSize 0 (1)
BeginArrow nsA:BeginArrow 0 (1)
EndArrow nsA:EndArrow 0 (1)
LineCap nsA:LineCap 0 (1)
BeginArrowSize nsA:BeginArrowSize 0 (1)
LineColorTrans nsA:LineColorTrans 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
Del nsA:Del (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:Line
