Definition Type: ComplexType
Name: Master_Type
Namespace: http://schemas.microsoft.com/visio/2003/core
Containing Schema: visio.xsd
Abstract
Collapse XSD Schema Diagram:

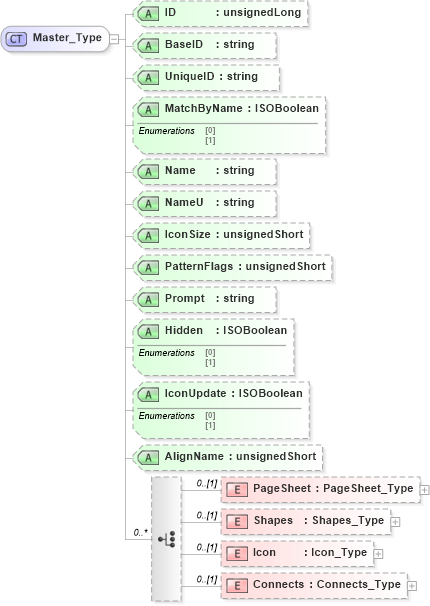

Drilldown into Connects in schema visio_xsd Drilldown into Icon in schema visio_xsd Drilldown into Shapes in schema visio_xsd Drilldown into PageSheet in schema visio_xsd Drilldown into AlignName in schema visio_xsd Drilldown into IconUpdate in schema visio_xsd Drilldown into Hidden in schema visio_xsd Drilldown into Prompt in schema visio_xsd Drilldown into PatternFlags in schema visio_xsd Drilldown into IconSize in schema visio_xsd Drilldown into NameU in schema visio_xsd Drilldown into Name in schema visio_xsd Drilldown into MatchByName in schema visio_xsd Drilldown into UniqueID in schema visio_xsd Drilldown into BaseID in schema visio_xsd Drilldown into ID in schema visio_xsdXSD Diagram of Master_Type in schema visio_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="Master_Type">
    <xsd:choice minOccurs="0" maxOccurs="unbounded">
        <xsd:element name="PageSheet" type="PageSheet_Type" minOccurs="0" />
        <xsd:element name="Shapes" type="Shapes_Type" minOccurs="0" />
        <xsd:element name="Icon" type="Icon_Type" minOccurs="0" />
        <xsd:element name="Connects" type="Connects_Type" minOccurs="0" />
    </xsd:choice>
    <xsd:attribute name="ID" type="xsd:unsignedLong" />
    <xsd:attribute name="BaseID" type="xsd:string" />
    <xsd:attribute name="UniqueID" type="xsd:string" />
    <xsd:attribute name="MatchByName" type="ISOBoolean" />
    <xsd:attribute name="Name" type="xsd:string" />
    <xsd:attribute name="NameU" type="xsd:string" />
    <xsd:attribute name="IconSize" type="xsd:unsignedShort" />
    <xsd:attribute name="PatternFlags" type="xsd:unsignedShort" />
    <xsd:attribute name="Prompt" type="xsd:string" />
    <xsd:attribute name="Hidden" type="ISOBoolean" />
    <xsd:attribute name="IconUpdate" type="ISOBoolean" />
    <xsd:attribute name="AlignName" type="xsd:unsignedShort" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PageSheet nsA:PageSheet 0 (1)
Shapes nsA:Shapes 0 (1)
Icon nsA:Icon 0 (1)
Connects nsA:Connects 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ID nsA:ID (Optional)
BaseID nsA:BaseID (Optional)
UniqueID nsA:UniqueID (Optional)
MatchByName nsA:MatchByName (Optional)
Name nsA:Name (Optional)
NameU nsA:NameU (Optional)
IconSize nsA:IconSize (Optional)
PatternFlags nsA:PatternFlags (Optional)
Prompt nsA:Prompt (Optional)
Hidden nsA:Hidden (Optional)
IconUpdate nsA:IconUpdate (Optional)
AlignName nsA:AlignName (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:Master
