Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: ComplexType
Name: MemberPropertyType
Namespace: urn:schemas-microsoft-com:office:excel
Containing Schema: excel.xsd
Abstract
Documentation:
Contains information about an OLAP member property field.

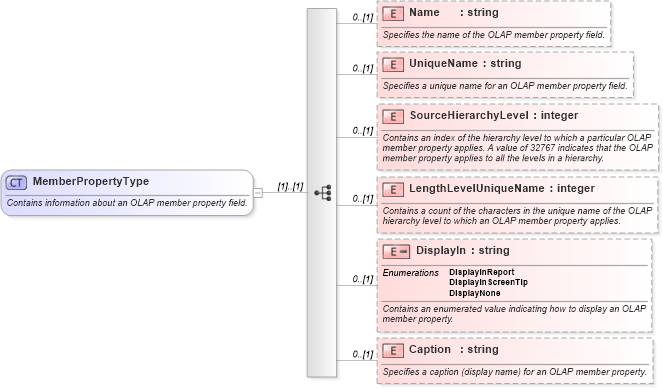

Collapse XSD Schema Diagram:
Drilldown into Caption in schema excel_xsd Drilldown into DisplayIn in schema excel_xsd Drilldown into LengthLevelUniqueName in schema excel_xsd Drilldown into SourceHierarchyLevel in schema excel_xsd Drilldown into UniqueName in schema excel_xsd Drilldown into Name in schema excel_xsdXSD Diagram of MemberPropertyType in schema excel_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="MemberPropertyType">
    <xsd:annotation>
        <xsd:documentation>Contains information about an OLAP member property field.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="Name" type="xsd:string" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Specifies the name of the OLAP member property field.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="UniqueName" type="xsd:string" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Specifies a unique name for an OLAP member property field.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="SourceHierarchyLevel" type="xsd:integer" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Contains an index of the hierarchy level to which a particular OLAP member property applies. A value of 32767 indicates that the OLAP member property applies to all the levels in a hierarchy.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="LengthLevelUniqueName" type="xsd:integer" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Contains a count of the characters in the unique name of the OLAP hierarchy level to which an OLAP member property applies.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="DisplayIn" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Contains an enumerated value indicating how to display an OLAP member property.</xsd:documentation>
            </xsd:annotation>
            <xsd:simpleType>
                <xsd:restriction base="xsd:string">
                    <xsd:enumeration value="DisplayInReport" />
                    <xsd:enumeration value="DisplayInScreenTip" />
                    <xsd:enumeration value="DisplayNone" />
                </xsd:restriction>
            </xsd:simpleType>
        </xsd:element>
        <xsd:element name="Caption" type="xsd:string" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Specifies a caption (display name) for an OLAP member property.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name x:Name 0 (1)
UniqueName x:UniqueName 0 (1)
SourceHierarchyLevel x:SourceHierarchyLevel 0 (1)
LengthLevelUniqueName x:LengthLevelUniqueName 0 (1)
DisplayIn x:DisplayIn 0 (1)
Caption x:Caption 0 (1)
Collapse Derivation Tree:
Collapse References:
x:MemberProperty, x:MemberProperty
