Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: ComplexType
Name: odsoElt
Namespace: http://schemas.microsoft.com/office/word/2003/wordml
Containing Schema: wordnet.xsd
Abstract
Documentation:
Defines an Office Data Source Object instance.

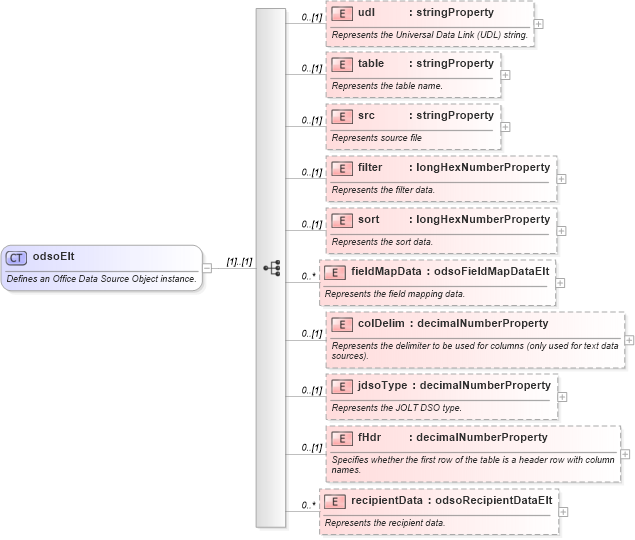

Collapse XSD Schema Diagram:
Drilldown into recipientData in schema wordnet_xsd Drilldown into fHdr in schema wordnet_xsd Drilldown into jdsoType in schema wordnet_xsd Drilldown into colDelim in schema wordnet_xsd Drilldown into fieldMapData in schema wordnet_xsd Drilldown into sort in schema wordnet_xsd Drilldown into filter in schema wordnet_xsd Drilldown into src in schema wordnet_xsd Drilldown into table in schema wordnet_xsd Drilldown into udl in schema wordnet_xsdXSD Diagram of odsoElt in schema wordnet_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="odsoElt">
    <xsd:annotation>
        <xsd:documentation>Defines an Office Data Source Object instance.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="udl" type="stringProperty" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Represents the Universal Data Link (UDL) string.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="table" type="stringProperty" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Represents the table name.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="src" type="stringProperty" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Represents source file</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="filter" type="longHexNumberProperty" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Represents the filter data.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="sort" type="longHexNumberProperty" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Represents the sort data.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="fieldMapData" type="odsoFieldMapDataElt" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>Represents the field mapping data.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="colDelim" type="decimalNumberProperty" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Represents the delimiter to be used for columns (only used for text data sources).</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="jdsoType" type="decimalNumberProperty" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Represents the JOLT DSO type.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="fHdr" type="decimalNumberProperty" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Specifies whether the first row of the table is a header row with column names.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="recipientData" type="odsoRecipientDataElt" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>Represents the recipient data.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
udl W:udl 0 (1)
table W:table 0 (1)
src W:src 0 (1)
filter W:filter 0 (1)
sort W:sort 0 (1)
fieldMapData W:fieldMapData 0 unbounded
colDelim W:colDelim 0 (1)
jdsoType W:jdsoType 0 (1)
fHdr W:fHdr 0 (1)
recipientData W:recipientData 0 unbounded
Collapse Derivation Tree:
Collapse References:
W:odso
