Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: ComplexType
Name: odsoRecipientDataElt
Namespace: http://schemas.microsoft.com/office/word/2003/wordml
Containing Schema: wordnet.xsd
Abstract
Documentation:
Defines the Office Data Source Object recipient data.

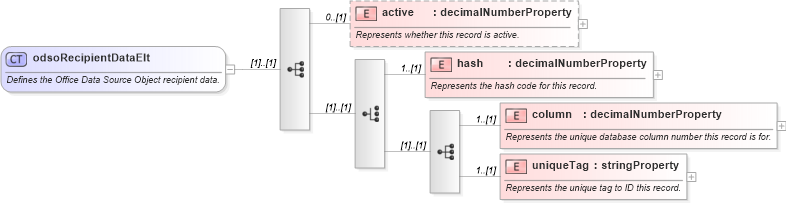

Collapse XSD Schema Diagram:
Drilldown into uniqueTag in schema wordnet_xsd Drilldown into column in schema wordnet_xsd Drilldown into hash in schema wordnet_xsd Drilldown into active in schema wordnet_xsdXSD Diagram of odsoRecipientDataElt in schema wordnet_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="odsoRecipientDataElt">
    <xsd:annotation>
        <xsd:documentation>Defines the Office Data Source Object recipient data.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="active" type="decimalNumberProperty" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Represents whether this record is active.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:choice>
            <xsd:element name="hash" type="decimalNumberProperty" minOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Represents the hash code for this record.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:sequence>
                <xsd:element name="column" type="decimalNumberProperty" minOccurs="1">
                    <xsd:annotation>
                        <xsd:documentation>Represents the unique database column number this record is for.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="uniqueTag" type="stringProperty" minOccurs="1">
                    <xsd:annotation>
                        <xsd:documentation>Represents the unique tag to ID this record.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:choice>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
active W:active 0 (1)
hash W:hash 1 (1)
column W:column 1 (1)
uniqueTag W:uniqueTag 1 (1)
Collapse Derivation Tree:
Collapse References:
W:recipientData
