Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: operation
Namespace: http://schemas.microsoft.com/office/infopath/2003/solutionDefinition
Containing Schema: sd.xsd
Abstract

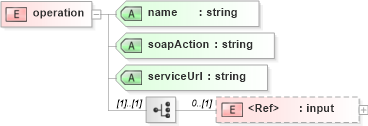

Collapse XSD Schema Diagram:
Drilldown into input in schema sd_xsd Drilldown into serviceUrl in schema sd_xsd Drilldown into soapAction in schema sd_xsd Drilldown into name in schema sd_xsdXSD Diagram of operation in schema sd_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="operation">
    <xsd:complexType>
        <xsd:choice>
            <xsd:element ref="xsf:input" minOccurs="0" />
        </xsd:choice>
        <xsd:attribute name="name" type="xsd:string" use="required" />
        <xsd:attribute name="soapAction" type="xsd:string" use="required" />
        <xsd:attribute name="serviceUrl" type="xsd:string" use="required" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
input xsf:input 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
name xsf:name Required
soapAction xsf:soapAction Required
serviceUrl xsf:serviceUrl Required
