<xsd:element name="OutlineCode" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation>The individual outline codes.</xsd:documentation>
</xsd:annotation>
<xsd:complexType>
<xsd:sequence>
<xsd:element name="FieldID" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Coresponds to the field number of outline code.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="FieldName" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The name of the custom outline code.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Alias" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The alias of the custom outline code.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="PhoneticAlias" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The phonetic pronunciation of the alias of the custom outline code.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Values" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The values of the table associated with this outline code.</xsd:documentation>
</xsd:annotation>
<xsd:complexType>
<xsd:sequence minOccurs="0" maxOccurs="unbounded">
<xsd:element name="Value">
<xsd:annotation>
<xsd:documentation>The individual values.</xsd:documentation>
</xsd:annotation>
<xsd:complexType>
<xsd:all>
<xsd:element name="ValueID" type="xsd:integer" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The unique ID of the outline code value across the project.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ParentValueID" type="xsd:integer" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The value of the parent node of the outline code.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Value" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The actual value.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Description" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation>A description of this value.</xsd:documentation>
</xsd:annotation>
</xsd:element>
</xsd:all>
</xsd:complexType>
</xsd:element>
</xsd:sequence>
</xsd:complexType>
</xsd:element>
<xsd:element name="Enterprise" type="xsd:boolean" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Indicates whether the custom outline code is an enterprise custom outline code.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="EnterpriseOutlineCodeAlias" type="xsd:integer" minOccurs="0">
<xsd:annotation>
<xsd:documentation>A reference to another custom field for which this is an alias.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ResourceSubstitutionEnabled" type="xsd:boolean" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Whether the custom outline code can be used by the Resource Substitution Wizard in Microsoft Project.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="LeafOnly" type="xsd:boolean" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Whether or not values specified in this outline code field must be leaf values.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="AllLevelsRequired" type="xsd:boolean" minOccurs="0">
<xsd:annotation>
<xsd:documentation>New codes must have all levels present. Not available for Enterprise Codes.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="OnlyTableValuesAllowed" type="xsd:boolean" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Whether values specified must come from values table.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Masks" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The table of entries that define the outline code mask.</xsd:documentation>
</xsd:annotation>
<xsd:complexType>
<xsd:sequence>
<xsd:element name="Mask" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation>The four elements of the mask constitute the format in which the outline code must appear.</xsd:documentation>
</xsd:annotation>
<xsd:complexType>
<xsd:sequence>
<xsd:element name="Level" type="xsd:integer" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The level of the mask.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Type" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The type of mask. Values are: 0=Numbers, 1=Upper Case Letters, 2=Lower Case Letters, 3=Characters</xsd:documentation>
</xsd:annotation>
<xsd:simpleType>
<xsd:restriction base="xsd:integer">
<xsd:enumeration value="0" />
<xsd:enumeration value="1" />
<xsd:enumeration value="2" />
<xsd:enumeration value="3" />
</xsd:restriction>
</xsd:simpleType>
</xsd:element>
<xsd:element name="Length" type="xsd:integer" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The maximum length in characters of the outline code values. If length is any, the value is zero.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Separator" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The separator value of the code values.</xsd:documentation>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:complexType>
</xsd:element>
</xsd:sequence>
</xsd:complexType>
</xsd:element>
</xsd:sequence>
</xsd:complexType>
</xsd:element>
|

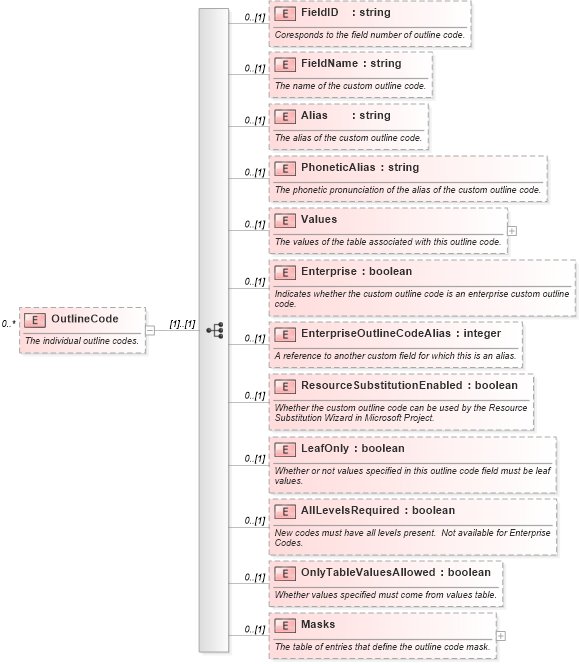

XSD Schema Diagram:
