Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: OutlineCode
Namespace: http://schemas.microsoft.com/project
Containing Schema: mspdi.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
The value of an outline code. Two pieces of data are necessary - a pointer back to the outline code table which is specified either by the unique ID or the Field ID, and the value which is specified either with the value, or a pointer back to the value list.

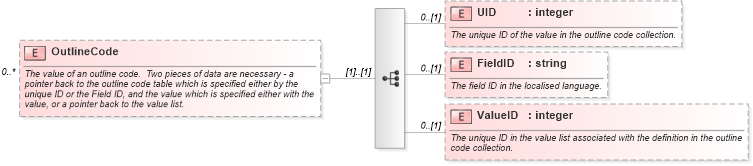

Collapse XSD Schema Diagram:
Drilldown into ValueID in schema mspdi_xsd Drilldown into FieldID in schema mspdi_xsd Drilldown into UID in schema mspdi_xsdXSD Diagram of OutlineCode in schema mspdi_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="OutlineCode" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>The value of an outline code.  Two pieces of data are necessary - a pointer back to the outline code table which is specified either by the unique ID or the Field ID, and the value which is specified either with the value, or a pointer back to the value list.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element name="UID" type="xsd:integer" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>The unique ID of the value in the outline code collection.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="FieldID" type="xsd:string" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>The field ID in the localised language.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="ValueID" type="xsd:integer" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>The unique ID in the value list associated with the definition in the outline code collection.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:sequence>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
UID nsC:UID 0 (1)
FieldID nsC:FieldID 0 (1)
ValueID nsC:ValueID 0 (1)
