Definition Type: ComplexType
Name: PageLayout_Type
Namespace: http://schemas.microsoft.com/visio/2003/core
Type: nsA:Row_Type
Containing Schema: visio.xsd
Abstract

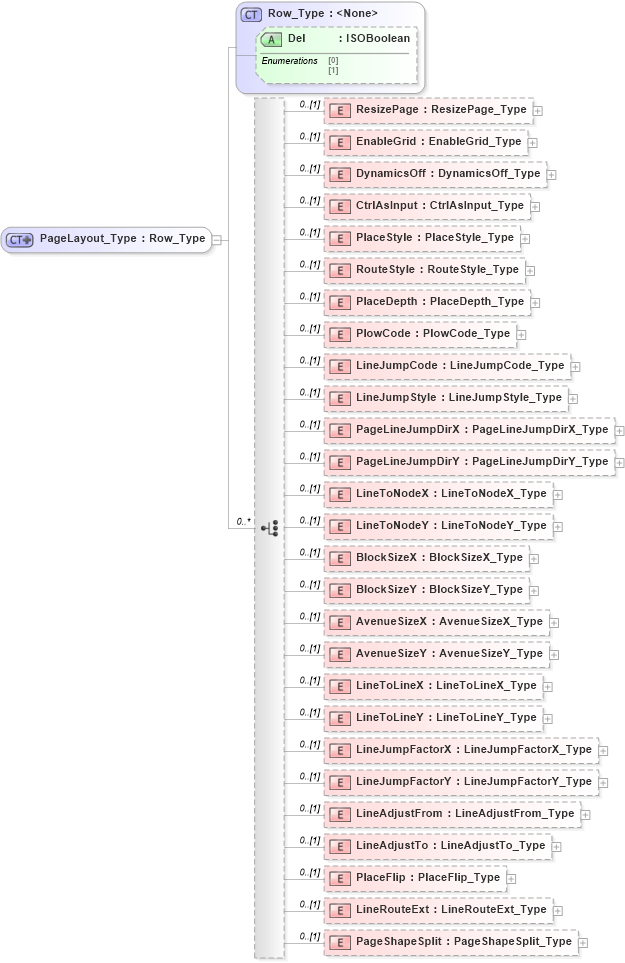

Collapse XSD Schema Diagram:
Drilldown into PageShapeSplit in schema visio_xsd Drilldown into LineRouteExt in schema visio_xsd Drilldown into PlaceFlip in schema visio_xsd Drilldown into LineAdjustTo in schema visio_xsd Drilldown into LineAdjustFrom in schema visio_xsd Drilldown into LineJumpFactorY in schema visio_xsd Drilldown into LineJumpFactorX in schema visio_xsd Drilldown into LineToLineY in schema visio_xsd Drilldown into LineToLineX in schema visio_xsd Drilldown into AvenueSizeY in schema visio_xsd Drilldown into AvenueSizeX in schema visio_xsd Drilldown into BlockSizeY in schema visio_xsd Drilldown into BlockSizeX in schema visio_xsd Drilldown into LineToNodeY in schema visio_xsd Drilldown into LineToNodeX in schema visio_xsd Drilldown into PageLineJumpDirY in schema visio_xsd Drilldown into PageLineJumpDirX in schema visio_xsd Drilldown into LineJumpStyle in schema visio_xsd Drilldown into LineJumpCode in schema visio_xsd Drilldown into PlowCode in schema visio_xsd Drilldown into PlaceDepth in schema visio_xsd Drilldown into RouteStyle in schema visio_xsd Drilldown into PlaceStyle in schema visio_xsd Drilldown into CtrlAsInput in schema visio_xsd Drilldown into DynamicsOff in schema visio_xsd Drilldown into EnableGrid in schema visio_xsd Drilldown into ResizePage in schema visio_xsd Drilldown into Del in schema visio_xsd Drilldown into Row_Type in schema visio_xsdXSD Diagram of PageLayout_Type in schema visio_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="PageLayout_Type">
    <xsd:complexContent>
        <xsd:extension base="Row_Type">
            <xsd:choice minOccurs="0" maxOccurs="unbounded">
                <xsd:element name="ResizePage" type="ResizePage_Type" minOccurs="0" />
                <xsd:element name="EnableGrid" type="EnableGrid_Type" minOccurs="0" />
                <xsd:element name="DynamicsOff" type="DynamicsOff_Type" minOccurs="0" />
                <xsd:element name="CtrlAsInput" type="CtrlAsInput_Type" minOccurs="0" />
                <xsd:element name="PlaceStyle" type="PlaceStyle_Type" minOccurs="0" />
                <xsd:element name="RouteStyle" type="RouteStyle_Type" minOccurs="0" />
                <xsd:element name="PlaceDepth" type="PlaceDepth_Type" minOccurs="0" />
                <xsd:element name="PlowCode" type="PlowCode_Type" minOccurs="0" />
                <xsd:element name="LineJumpCode" type="LineJumpCode_Type" minOccurs="0" />
                <xsd:element name="LineJumpStyle" type="LineJumpStyle_Type" minOccurs="0" />
                <xsd:element name="PageLineJumpDirX" type="PageLineJumpDirX_Type" minOccurs="0" />
                <xsd:element name="PageLineJumpDirY" type="PageLineJumpDirY_Type" minOccurs="0" />
                <xsd:element name="LineToNodeX" type="LineToNodeX_Type" minOccurs="0" />
                <xsd:element name="LineToNodeY" type="LineToNodeY_Type" minOccurs="0" />
                <xsd:element name="BlockSizeX" type="BlockSizeX_Type" minOccurs="0" />
                <xsd:element name="BlockSizeY" type="BlockSizeY_Type" minOccurs="0" />
                <xsd:element name="AvenueSizeX" type="AvenueSizeX_Type" minOccurs="0" />
                <xsd:element name="AvenueSizeY" type="AvenueSizeY_Type" minOccurs="0" />
                <xsd:element name="LineToLineX" type="LineToLineX_Type" minOccurs="0" />
                <xsd:element name="LineToLineY" type="LineToLineY_Type" minOccurs="0" />
                <xsd:element name="LineJumpFactorX" type="LineJumpFactorX_Type" minOccurs="0" />
                <xsd:element name="LineJumpFactorY" type="LineJumpFactorY_Type" minOccurs="0" />
                <xsd:element name="LineAdjustFrom" type="LineAdjustFrom_Type" minOccurs="0" />
                <xsd:element name="LineAdjustTo" type="LineAdjustTo_Type" minOccurs="0" />
                <xsd:element name="PlaceFlip" type="PlaceFlip_Type" minOccurs="0" />
                <xsd:element name="LineRouteExt" type="LineRouteExt_Type" minOccurs="0" />
                <xsd:element name="PageShapeSplit" type="PageShapeSplit_Type" minOccurs="0" />
            </xsd:choice>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ResizePage nsA:ResizePage 0 (1)
EnableGrid nsA:EnableGrid 0 (1)
DynamicsOff nsA:DynamicsOff 0 (1)
CtrlAsInput nsA:CtrlAsInput 0 (1)
PlaceStyle nsA:PlaceStyle 0 (1)
RouteStyle nsA:RouteStyle 0 (1)
PlaceDepth nsA:PlaceDepth 0 (1)
PlowCode nsA:PlowCode 0 (1)
LineJumpCode nsA:LineJumpCode 0 (1)
LineJumpStyle nsA:LineJumpStyle 0 (1)
PageLineJumpDirX nsA:PageLineJumpDirX 0 (1)
PageLineJumpDirY nsA:PageLineJumpDirY 0 (1)
LineToNodeX nsA:LineToNodeX 0 (1)
LineToNodeY nsA:LineToNodeY 0 (1)
BlockSizeX nsA:BlockSizeX 0 (1)
BlockSizeY nsA:BlockSizeY 0 (1)
AvenueSizeX nsA:AvenueSizeX 0 (1)
AvenueSizeY nsA:AvenueSizeY 0 (1)
LineToLineX nsA:LineToLineX 0 (1)
LineToLineY nsA:LineToLineY 0 (1)
LineJumpFactorX nsA:LineJumpFactorX 0 (1)
LineJumpFactorY nsA:LineJumpFactorY 0 (1)
LineAdjustFrom nsA:LineAdjustFrom 0 (1)
LineAdjustTo nsA:LineAdjustTo 0 (1)
PlaceFlip nsA:PlaceFlip 0 (1)
LineRouteExt nsA:LineRouteExt 0 (1)
PageShapeSplit nsA:PageShapeSplit 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
Del nsA:Del (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:PageLayout
