Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: Pane
Namespace: urn:schemas-microsoft-com:office:excel
Type: x:PaneType
Containing Schema: excel.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Contains the properties of a pane in a worksheet window, or specifies a pane containing the structured selection of a PivotTable report.

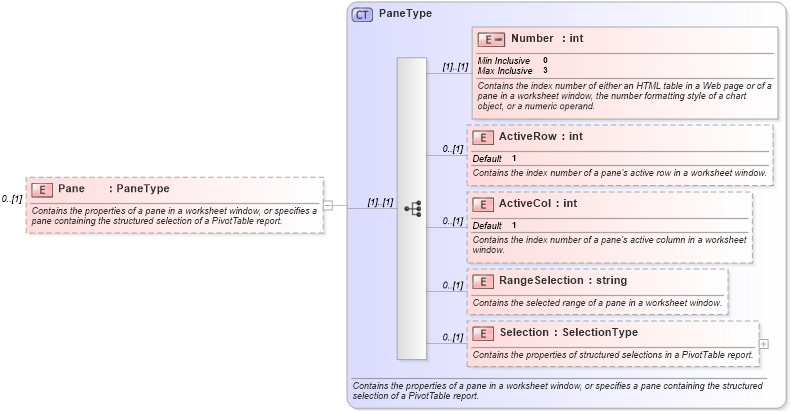

Collapse XSD Schema Diagram:
Drilldown into Selection in schema excel_xsd Drilldown into RangeSelection in schema excel_xsd Drilldown into ActiveCol in schema excel_xsd Drilldown into ActiveRow in schema excel_xsd Drilldown into Number in schema excel_xsd Drilldown into PaneType in schema excel_xsdXSD Diagram of Pane in schema excel_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="Pane" type="PaneType" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation>Contains the properties of a pane in a worksheet window, or specifies a pane containing the structured selection of a PivotTable report.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Number x:Number (1) (1)
ActiveRow x:ActiveRow 0 (1)
ActiveCol x:ActiveCol 0 (1)
RangeSelection x:RangeSelection 0 (1)
Selection x:Selection 0 (1)
Collapse Derivation Tree:
