Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: ComplexType
Name: Para_Type
Namespace: http://schemas.microsoft.com/visio/2003/core
Type: nsA:IndexedRow_Type
Containing Schema: visio.xsd
Abstract

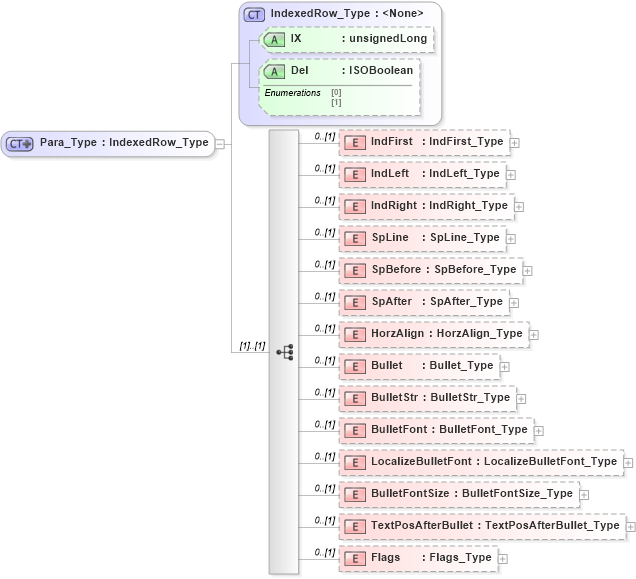

Collapse XSD Schema Diagram:
Drilldown into Flags in schema visio_xsd Drilldown into TextPosAfterBullet in schema visio_xsd Drilldown into BulletFontSize in schema visio_xsd Drilldown into LocalizeBulletFont in schema visio_xsd Drilldown into BulletFont in schema visio_xsd Drilldown into BulletStr in schema visio_xsd Drilldown into Bullet in schema visio_xsd Drilldown into HorzAlign in schema visio_xsd Drilldown into SpAfter in schema visio_xsd Drilldown into SpBefore in schema visio_xsd Drilldown into SpLine in schema visio_xsd Drilldown into IndRight in schema visio_xsd Drilldown into IndLeft in schema visio_xsd Drilldown into IndFirst in schema visio_xsd Drilldown into Del in schema visio_xsd Drilldown into IX in schema visio_xsd Drilldown into IndexedRow_Type in schema visio_xsdXSD Diagram of Para_Type in schema visio_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="Para_Type">
    <xsd:complexContent>
        <xsd:extension base="IndexedRow_Type">
            <xsd:sequence>
                <xsd:element name="IndFirst" type="IndFirst_Type" minOccurs="0" />
                <xsd:element name="IndLeft" type="IndLeft_Type" minOccurs="0" />
                <xsd:element name="IndRight" type="IndRight_Type" minOccurs="0" />
                <xsd:element name="SpLine" type="SpLine_Type" minOccurs="0" />
                <xsd:element name="SpBefore" type="SpBefore_Type" minOccurs="0" />
                <xsd:element name="SpAfter" type="SpAfter_Type" minOccurs="0" />
                <xsd:element name="HorzAlign" type="HorzAlign_Type" minOccurs="0" />
                <xsd:element name="Bullet" type="Bullet_Type" minOccurs="0" />
                <xsd:element name="BulletStr" type="BulletStr_Type" minOccurs="0" />
                <xsd:element name="BulletFont" type="BulletFont_Type" minOccurs="0" />
                <xsd:element name="LocalizeBulletFont" type="LocalizeBulletFont_Type" minOccurs="0" />
                <xsd:element name="BulletFontSize" type="BulletFontSize_Type" minOccurs="0" />
                <xsd:element name="TextPosAfterBullet" type="TextPosAfterBullet_Type" minOccurs="0" />
                <xsd:element name="Flags" type="Flags_Type" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IndFirst nsA:IndFirst 0 (1)
IndLeft nsA:IndLeft 0 (1)
IndRight nsA:IndRight 0 (1)
SpLine nsA:SpLine 0 (1)
SpBefore nsA:SpBefore 0 (1)
SpAfter nsA:SpAfter 0 (1)
HorzAlign nsA:HorzAlign 0 (1)
Bullet nsA:Bullet 0 (1)
BulletStr nsA:BulletStr 0 (1)
BulletFont nsA:BulletFont 0 (1)
LocalizeBulletFont nsA:LocalizeBulletFont 0 (1)
BulletFontSize nsA:BulletFontSize 0 (1)
TextPosAfterBullet nsA:TextPosAfterBullet 0 (1)
Flags nsA:Flags 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
IX nsA:IX (Optional)
Del nsA:Del (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:Para
