<xsd:complexType name="PlaceObjectsVerb">
<xsd:annotation>
<xsd:documentation xml:lang="en">
Places top level page objecs on the page, or replaces them if they
already exist.
</xsd:documentation>
</xsd:annotation>
<xsd:sequence>
<xsd:element name="Object" maxOccurs="unbounded">
<xsd:complexType>
<xsd:choice>
<xsd:element name="Delete" />
<xsd:sequence>
<xsd:element name="Position">
<xsd:complexType>
<!-- X and Y coordinates are represented as points. -->
<xsd:attribute name="x" type="xsd:decimal" use="required" />
<xsd:attribute name="y" type="xsd:decimal" use="required" />
</xsd:complexType>
</xsd:element>
<xsd:choice>
<xsd:element name="Image">
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="ImageContent">
<xsd:attribute name="backgroundImage" type="xsd:boolean" default="false" />
<!-- Width and Height are also expressed in points. -->
<xsd:attribute name="width" type="PositiveDecimal" />
<xsd:attribute name="height" type="PositiveDecimal" />
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
<xsd:element name="Ink">
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="InkContent">
<xsd:attribute name="width" type="PositiveDecimal" />
<xsd:attribute name="height" type="PositiveDecimal" />
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
<xsd:element name="Outline">
<xsd:complexType>
<xsd:sequence>
<xsd:choice maxOccurs="unbounded">
<xsd:element name="Image">
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="ImageContent">
<xsd:attribute name="align">
<xsd:simpleType>
<xsd:restriction base="xsd:string">
<xsd:enumeration value="left" />
<xsd:enumeration value="center" />
<xsd:enumeration value="right" />
</xsd:restriction>
</xsd:simpleType>
</xsd:attribute>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
<xsd:element name="Ink" type="InkContent" />
<xsd:element name="Html" type="HtmlContent" />
</xsd:choice>
</xsd:sequence>
<xsd:attribute name="width" type="PositiveDecimal" />
</xsd:complexType>
</xsd:element>
</xsd:choice>
</xsd:sequence>
</xsd:choice>
<xsd:attribute name="guid" type="GUID" use="required" />
</xsd:complexType>
</xsd:element>
</xsd:sequence>
<xsd:attribute name="pagePath" type="xsd:string" use="required" />
<xsd:attribute name="pageGuid" type="GUID" use="required" />
</xsd:complexType>
|

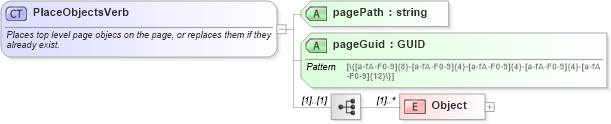

XSD Schema Diagram:
